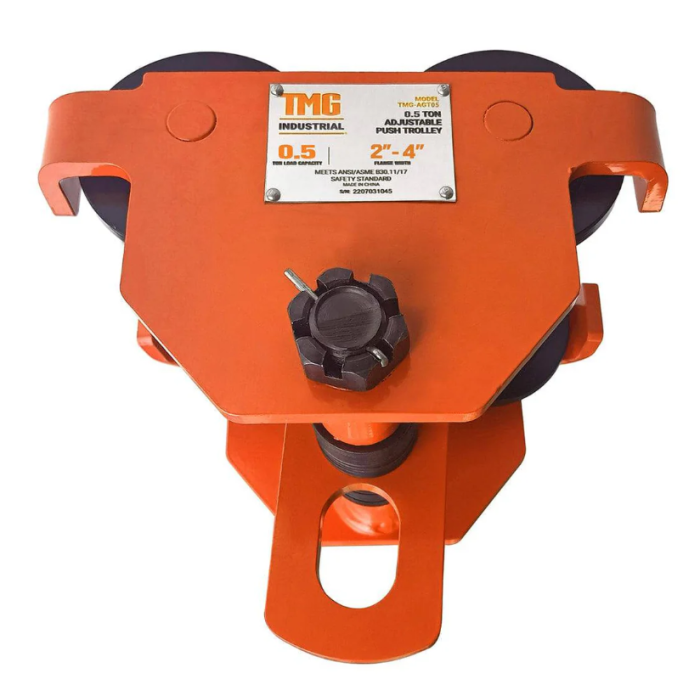

TMG Industrial TMG-AGT05 0.5 Ton Adjustable Push Trolley, Fits 2" to 4" Width I-Beam, ANSI/ASME B30.11/B30.17 Standards

Brand New


this item condition is new

Special Order


usually ships within 10-15 business days
CA$179.00
Model No: TMG-AGT05
Website Product ID: 77532

The TMG-AGT05 Adjustable Push Trolley can be used to accommodate chain and lever hoists for applications that require a load to be suspended or lifted overhead. Especially useful in places like factories, shops, boatyards, docks, warehouses and anywhere that power is not readily available. Easily attaches to wide-flange H-beams, standard I-beams and even curved track I-beams.

With a maximum loaded capacity of 1100 lb, you’ll be able to hoist or hold equipment, parts, other objects and implements with ease. Use the included spacer washers to manually adjust to your beam's width, and modify to install anywhere along its track.

Hardened wheels have lifelong lubricated double sealed ball bearings for a smooth gliding action. Rugged steel side plates feature built-in bumper guards to further increase the lifespan of this heavy-duty, dependable trolley.

Features

  • Used to accommodate chain and lever hoists for applications that require a load to be suspended or lifted overhead
  • Maximum load capacity of 1100 lb, especially useful in places like factories, warehouses, boatyards and anywhere power is not readily available
  • Able to adapt to most wide-flange H-beams, standard I-beams and even curved track I-beams; can install/remove on any point along the beam
  • Simple adjustment by removing the cotter pin and modifying the shift spacers to accurately and securely fit the width of your beam
  • Hardened wheels with double sealed ball bearings allow for smooth gliding action and the rugged steel side plates feature built-in bumper guards

Specifications

  • Style: Manual trolley
  • Loaded capacity: 1100 lb (0.5 ton)
  • Max. loaded capacity: 1375 lb
  • Max. beam height: 8”
  • Min. flange width: 2”
  • Max. flange width: 4”
  • Min. radius curve: 36”
  • This product is packed in a wood crate shipping box
  • Shipping dimension: 11” x 3” x 6” (L x W x H)
  • Shipping weight: 15 lb
  • Compliance: OSHA Regulation 1910.179, ANSI/ASME B30.11/B30.17 standards/li>

Includes

(1) 0.5 Ton Adjustable Push Trolley, Fits 2" to 4" Width I-Beam, ANSI/ASME B30.11/B30.17 Standards
