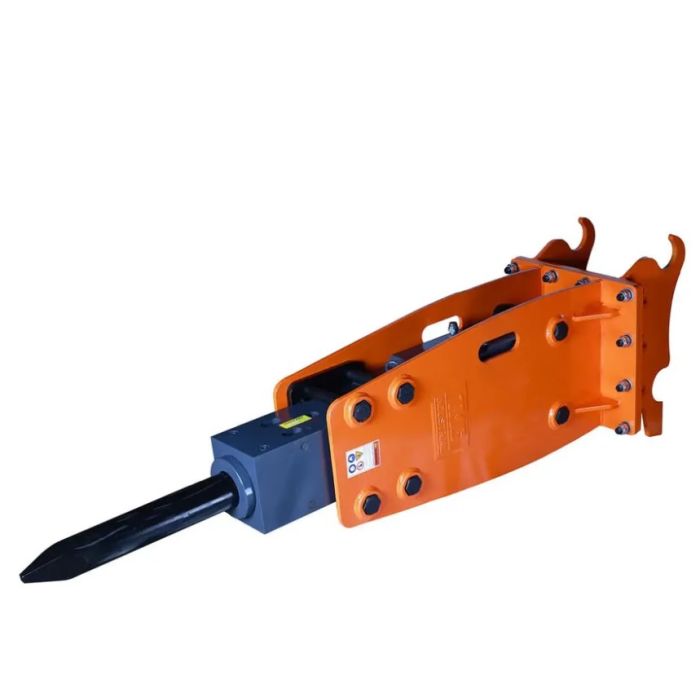

The TMG Industrial 10 to 15-ton quick-change (Q/C) excavator hydraulic breaker is designed for heavy-duty use. The 4'' (100mm) moil point chisel can handle both medium and heavy jobs and is widely used for demolition, landscaping, and excavation sites. An impact rate of 400-700 BPM combined with 2200-2500 psi working flow pressure makes this a versatile and efficient breaking hammer.
Features
Compatible with 10 to 15 ton excavators using a quick-change lugging system
4''/ 100 mm moil point chisel for large-scale demolition of reinforced concrete and stone
Delivers 1918 ft-lb / 2600 J impact energy at 400–700 bpm for heavy-duty performance
Operates at 2200–2500 psi with 21-32 gpm / 80–120 L/min hydraulic flow
Nitrogen-charged power cell ensures efficient, consistent impact force
Includes hydraulic hoses with NPT fittings, nitrogen charging kit, and service tool kit
Specifications
Operating weight: 1600 lb
Working pressure: 2200-2500 PSI
Working flow: 21-32 GPM
Impact rate: 400-700 BPM
Impact energy: 1960 joules
Chisel diameter: 4''
Hydraulic hose diameter: 3/4”
Ear spacing - inside: 13.9''
Ear spacing - outside: 15.9''
Pin center to center: 18.3''
Packed in one metal shipping crate
Shipping dimension: 73” x 29” x 27”
Shipping weight: 1860 lb
Includes:
(1) 4'' (100mm) moil point chisel
(2) 3/4” hydraulic hose with NPT fitting
(1) nitrogen charge kit with CGA580 cylinder adaptor
(1) service tool kit
Includes
(1) 10-15 Ton Quick-Change Hydraulic Breaker, 4'' Moil Point Chisel, 400-700BPM TMG-HB150Q
