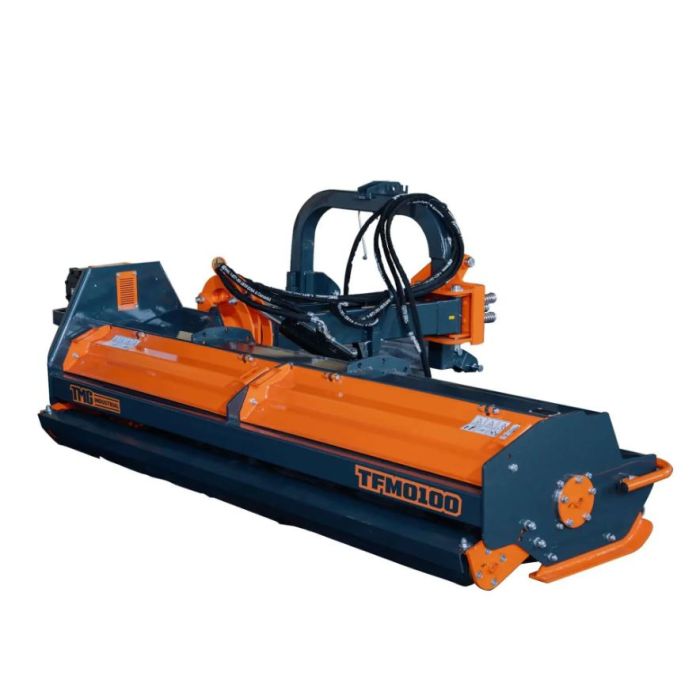

TMG Industrial TMG-TFMO100 100" Ditch Bank Flail Mower

Brand New


this item condition is new

Special Order


usually ships within 10-15 business days
CA$8,699.00
Model No: TMG-TFMO100
Website Product ID: 78575

The TMG-TFMO100 Ditch Bank Flail Mower is a heavy-duty, commercial-grade mower built to handle tough, uneven terrain. With a 2100 lb frame and CMR gearbox from Italy, it provides reliable, long-lasting performance for agriculture, landscaping, and property maintenance.

Featuring a double spiral hammer rotor and 100" working width, it easily cuts through thick grass, brush, and overgrowth. The hydraulic side offset allows for precise, clean cuts on slopes, ditches, and embankments. The mower also includes an adjustable rear discharge panel and a PTO shaft with safety cover for enhanced efficiency and safety.

For easy maintenance, the TMG-TFMO100 has a top lid that opens for quick grass jam clearance and blade replacements, minimizing downtime.

Ideal for farms, estates, and professional landscaping, the TMG-TFMO100 delivers the power, durability, and ease of use needed to maintain large properties and diverse terrains.

Features

  • Built with a robust 2100 lb frame for strength, stability, and long working days
  • Equipped with a heavy hammer rotor and 100” working width for quality grass control
  • Powered by a 65HP CMR gearbox from Italy for consistent performance
  • Includes an adjustable rear opening panel for convenient maintenance access
  • PTO shaft w/safety pin; dynamically balance tested for safe and reliable operation
  • Hydraulically controlled side to side movement & right side offset with 65° downwards for ditch bank mowing and 90° upwards tilt for easy transportation

Specifications

  • Working width: 100”
  • Tractor power required: 80-120 HP
  • Category 2, 3-point hitch
  • Anti-shock with spring, outside rotor bearing
  • 1200g hammer: 24
  • Rotor diameter: 5-½”
  • Rotor thickness: ½”
  • Rear roller diameter: 6”
  • Rear roller thickness: ¼”
  • Tilt-up angle: 90°
  • Tilt-down angle: 55°
  • Gearbox (RPM 540): 65 HP CMR Italian gearbox
  • With rear open door: 2 pcs rear open door
  • Vertical extending distance: 109”
  • Horizontal extending distance: 92”
  • Adjustable rear opening panel for easy maintenance
  • Includes PTO shaft w/safety pin
  • Each mower has passed a dynamic balance test
  • All models are equipped w/a double spiral rotor
  • Product net weight: 2100 lb

Includes

(1)TMG-TFMO100 100" Ditch Bank Flail Mower, Offset Verge & Slope Cutter for Tractors 80-120 HP, Italian Gearbox
