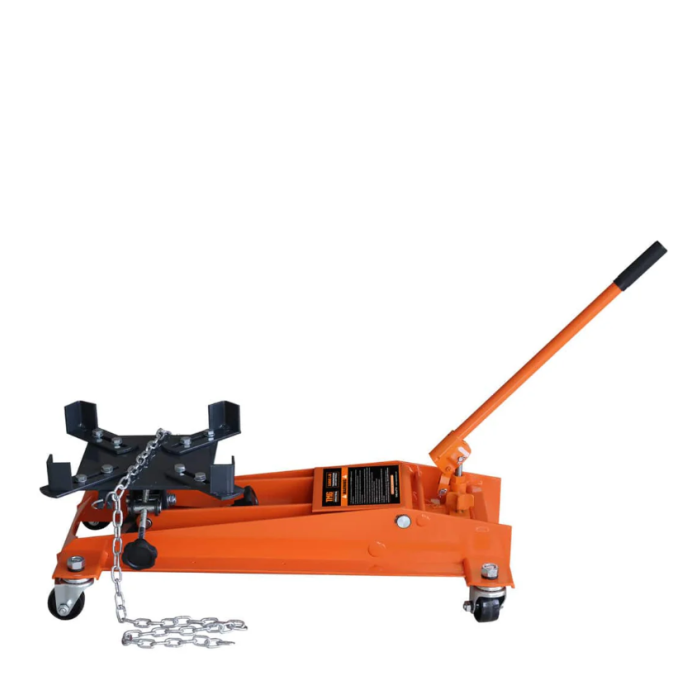

The TMG-AJT10 Transmission Jack will make the removal and installation on your next transmission job simple and easy to do. It has a low-profile design and 1100 lb carrying capacity to hold and move most transmissions with incredible effectiveness and efficiency.
This jack features a 360° moving handle that offers diverse rotational mobility for hard to reach lifting points. A manually operated hydraulic system will effortlessly lift your transmission, and a bypass system prevents over-extension and accidental overload onto the unit.
Four heavy-duty swivel caster wheels allow for easy maneuvering throughout your shop, and maximize the storage capabilities of this jack’s already sleek and compact design.
Features
Designed for the easy installation and removal of transmissions; 1100 lb carrying capacity and 30” maximum height
360° handle that offers rotational mobility for hard-to-reach lifting points and a low-profile design that can fit where others jacks can’t
Manually operated hydraulic system with a separate bypass system that prevents over-extension and accidental overload of the jack
Four heavy-duty swivel casters that allow for easy maneuvering throughout the shop as well as easy, tight angle storage when not in use
Universal mounting head provides a wide fore and aft tilt range and also comes with a holding chain to ensure to safe, secure transport of the transmission
Specifications
Capacity: 1100 lb (0.5 ton)
Minimum height: 8” (215mm)
Maximum height: 22” (560mm)
Net Weight: 74 lb
Finish: Orange/black
Material: All steel
This product is packed in a carton crate shipping box
