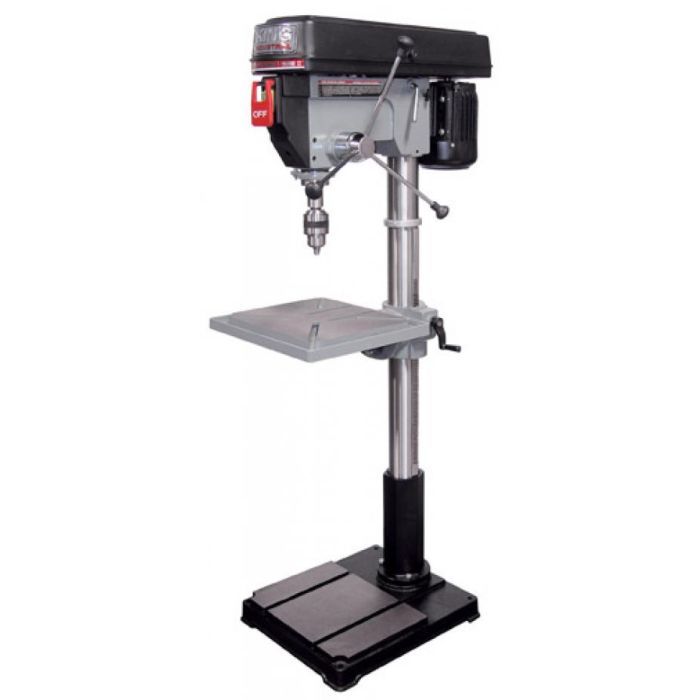

King KC-122FC 12 Speed - 22" Drill Press

Brand New


this item condition is new

Special Order


usually ships within 10-15 business days
CA$1,299.00
Model No: KC-122FC
Website Product ID: 7523

Features

  • Powerful 1 HP motor
  • Line interruption electro-mechanical switch needs a restart after a power failure
  • Spindle is supported by high quality ball bearings
  • Cast-iron pulleys reduce vibrations
  • 45° tilting table for angular drilling
  • Non-slip rubber feed handles
  • 12 Speeds
  • Light socket incorporated into drill press head (standard light bulb not included)
  • Line interruption electro-mechanical switch
  • Locking depth stop for accurate repetitive blind hole drilling

Specifications

  • Capacity : 1-1/4"
  • Chuck size : 3/4"
  • Swing : 22"
  • Stroke : 4-3/4"
  • Max. distance chuck to table : 21-3/4"
  • Max. distance chuck to base : 41-7/8"
  • Table size : 18-3/4" x 16-1/4"
  • Table T-slot size : 5/8"
  • Spindle taper : MT#4
  • Quill diameter : 75mm
  • Speeds (RPM) : 12 (180-4200)
  • Motor : 12.5 Amp.@ 110V, 6.25 Amp.@ 220V
  • Voltage : 110/220V, 1 phase, 60Hz
  • Pre-wired at : 110V
  • Assembled dimension : .
  • Length : 18-3/4”
  • Width : 33”
  • Height : 69”
  • Weight : 360 lbs

Includes

  • (1) 12 Speed - 22" Drill Press (KC-122FC)
