King KC-1236ML/KM-053 12" x 36" Gearhead Lathe with Stand (SS-1236) and taper attachment(KM-053)

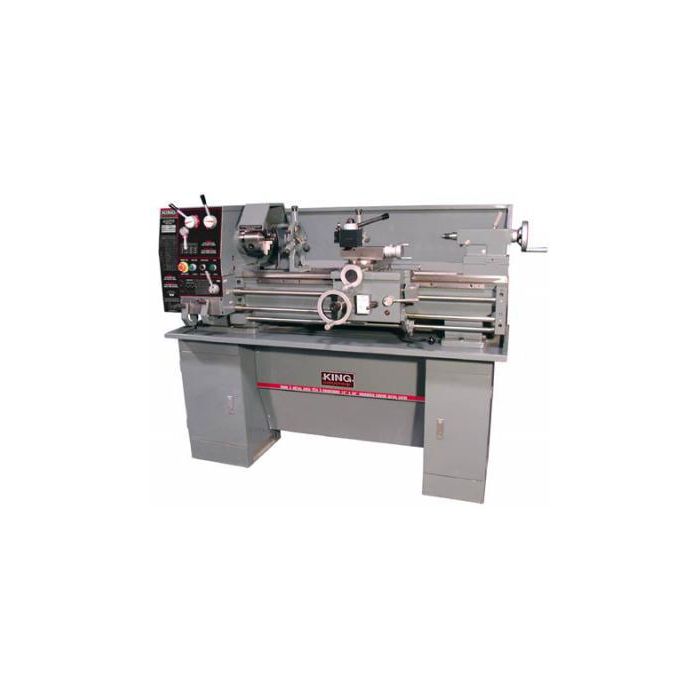

main product photo

Pictures are only for respresentation, actual product may vary, the Model #/SKU/Part number listed above is what you will receive

Brand New


this item condition is new

Special Order


usually ships within 10-15 business days
CA$7,999.99
Model No: KC-1236ML/KM-053
Website Product ID: 9117

Features

  • Powerful 1.5 HP motor
  • Safety guard with limit switch protection
  • Line interruption switch system needs a restart after a power failure
  • Guideway and gears in headstock are all hardened and precision ground
  • Comes complete with 6”-3 jaw chuck, 8”-4 jaw chuck, imperial and metric gears, quick change tool post, steady rest, follow rest, 10” DI-4 camlock face plate, thread chasing dial indicator, MT#3 dead center, MT#3 arbor taper, 1/2” drill chuck, full length splash guard, tool box, chuck keys and hex. keys
  • These taper attachments are designed to fit our KC-1236ML (12” x 36”) metal lathe models
  • ***Taper Attachment must be ordered installed on KC-1236ML

Specifications

  • Distance between centers : 36"
  • Swing over bed : 12"
  • Swing over gap : 18"
  • Spindle bore : 1 1/2”
  • Swing over cross slide : 7-1/4"
  • Taper in headstock : MT#5
  • Taper in tailstock : MT#3
  • Width of bedways : 7-1/4"
  • Total travel of cross slide : 6-3/8"
  • Total travel of top slide : 3-3/8"
  • Spindle speeds (RPM) : 9 (60-1500)
  • Thread cutting : 40(4-112 TPI) 30(.2 - 4.5mm)
  • Motor : 8.7 Amp.
  • Voltage : 220V, 1 phase, 60Hz
  • Assembled dimensions (LxWxH)/weight : 65” x 28” x 28” / 710 lbs
  • Package dimensions (LxWxH)/weight : 65-3/8” x 29” x 29” / 925 lbs

Includes

  • (1) Taper Attachment(KM-053)
  • (1) 12" x 36" Gearhead Lathe (KC-1236)
  • (1) Stand (SS-1236)
