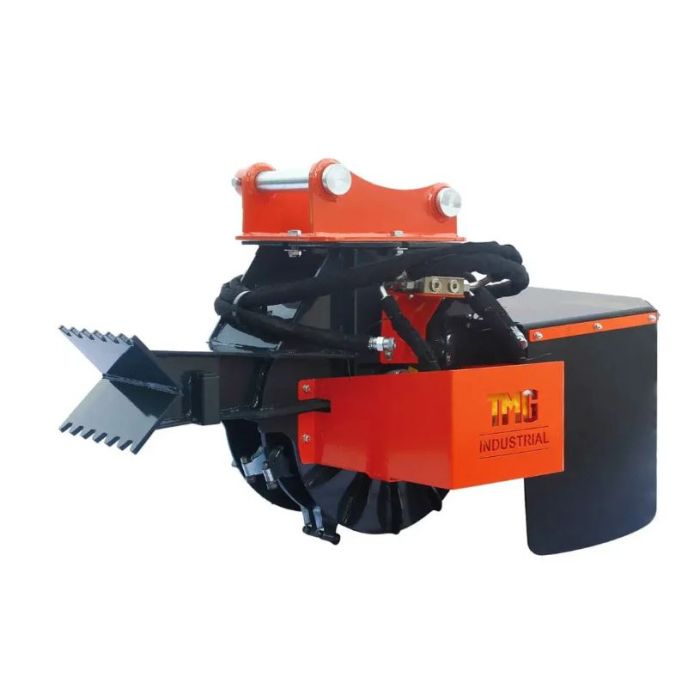

The TMG-ESG18 Stump Grinder Attachment turns your excavator and backhoe into a dynamic cutting and tree base removal machine. Otherwise usable land can be severely hampered by inconvenient trunk stems that are difficult to clear, but this grinder will take care of all of them. The piston hydraulic motor provides higher speeds and efficiency to transform your excavator’s horsepower into heavy-duty cutting action.
16 replaceable and forged steel carbide teeth maintain their sharpness and rigidity even under intense working loads. This grinder has an 18-½" cutting wheel diameter and below ground cutting capacity to knock out even the toughest root systems. Allows you to clear land of cumbersome stumps and maximize space to get the most out of your property investments.
Compatible with 3-7 ton excavators and backhoes, and is equipped with a pin-grabber lugging mount that offers easy hookup and dismount wherever your excavator can take you. Solid, industrial base provides you with a secure cutting platform that increases work performance through the reduction of vibrational inefficiencies and overall stress on your excavator. Also included is a replaceable, fiber-reinforced rubber guard that helps to minimize chip spray while working.
Features
Perfect attachment for municipalities, equipment rentals, landscaping contractors, acreage homeowners, commercial developments and more
Compatible with 3-7 ton excavators and backhoes and equipped with a pin-grabber lugging mount for simple, efficient hookup and dismount wherever your machine can take you
A piston hydraulic motor provides higher speeds and efficiency to transform your excavator’s horsepower into heavy-duty cutting action
16 carbide steel teeth are housed in the 18” milling wheel and are designed to perform under heavy working conditions while maintaining sharpness
Hydraulic flow rate of 13-20 GPM and a cutting wheel speed of 850-1350 RPM all operate within a compact profile to easily access narrow areas
Included is a replaceable, fiber-reinforced rubber guard that helps to minimize chip spray and maximize safety while working
Built-in footrest provides level storage and protection of the motor and hoses when not in use; increases lifespan and keeps components in good working order
IMPORTANT: A case drain line (3rd hose line--3/8'') is required to be added prior to use of this attachment. The case drain line will relieve the excess pressure and drain it back to your return line, then into the reservoir. Without a case drain line installed properly, that extra pressure will blow a seal or damage your hydraulic line.
Specifications
Product size: 55” (L) x 36” (W) x 34” (H)
Cutting teeth: 16
Cutting wheel diameter: 18-½”
Cutting wheel thickness: ¾”
Cutting wheel speed: 850-1350 RPM
Hydraulic flow: 13-20 GPM
Working weight: 730 lb
Excavator capacity recommended: 3 to 7 ton
Case drain line required to add
Includes
(1)TMG-ESG18 18" Excavator Stump Grinder Attachment, 3 to 7-ton Carrier, 13-20 GPM, Case Drain Line
