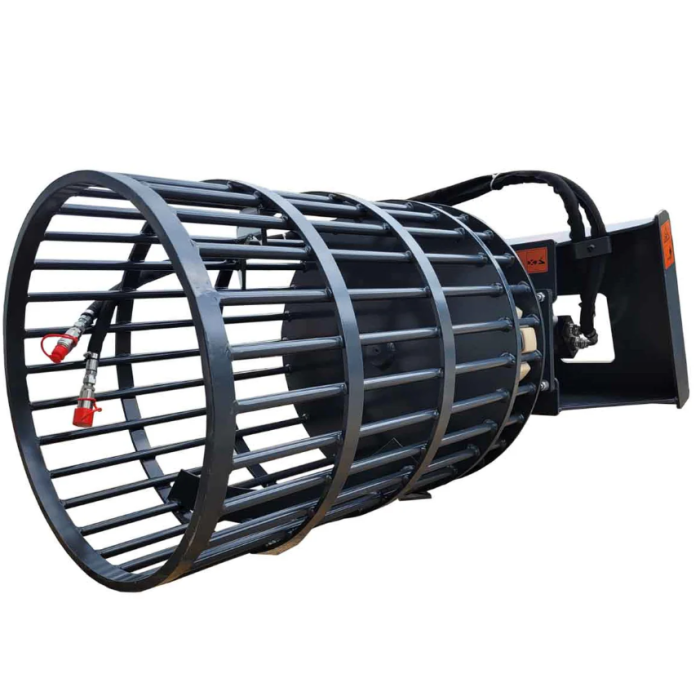

The TMG-SRP32 Skid-Steer Rotary Rock Picker is engineered to eliminate the strenuous task of clearing fields. This robust attachment features a 30" diameter caged barrel and 39" depth to efficiently scoop and collect rocks up to 28" in size, simplifying land maintenance and preparation for agricultural or construction projects.
Durability is central to the TMG-SRP32’s design, ensuring long-lasting performance in tough conditions. The crucial barrel opening and spindles are constructed from NM400 wear-resistant steel. Its effective design includes 2 1/2" spacing between the bars to allow dirt and fine debris to sift through, collecting only the stones.
The rock picker offers high operational efficiency, capable of handling an approximate load capacity of 1,300 lb. It connects easily via a Universal Skid Steer Mount and is powered by a heavy-duty direct-drive hydraulic motor. This attachment is compatible with skid steers requiring a flow rate of 10–20 GPM and falling within the 40–75 HP range.
Features
30″ (762 mm) drum diameter efficiently scoops rocks and debris
Robust 22 mm solid rod barrel bars built for durability
Heavy-duty direct-drive hydraulic motor delivers high torque
Barrel opening and spindles made of NM400 wear-resistant steel
2½″ (64 mm) bar spacing lets dirt fall through, keeping only stones
Universal quick-attach mounting system ensures broad compatibility
Specifications
This product is packed in a metal crate shipping box.
Shipping dimension (L × W × H): 56″ × 46″ × 35″
Shipping weight: 1035 lb (470 kg)
Skid Steer Power Range: 40–75 HP
Mount Type: Universal Quick-Attach Mount
Load Capacity: 1,300 lb (590 kg)
Drum Diameter: 30″ (762 mm)
Maximum Rock Diameter: 28” (712 mm)
Barrel Depth: 39″ (990 mm)
Barrel Bar Diameter: 0.9″ (22 mm) solid rod
Spacing Between Bars: 2½″ (64 mm)
Thickness of Bottom of Barrel: 0.8” (20 mm)
Main drive axle diameter: 3.5” (89 mm)
Hydraulic Pressure: 2,300 - 3,500 PSI
Hydraulic Flow Rate: 10 – 20 GPM
Barrel Rotation Rate: 20 – 30 RPM
Steel material of barrel opening and spindles: NM400
Steel material of barrel and mount: Q345B (A572 ASTM)
Bearing rating: 10 tons
Includes
(1) 30" Skid-Steer Rotary Rock Picker, 1,250 lb Load Capacity, NM400 Wear Resistant Steel, Universal Mount TMG-SRP32
