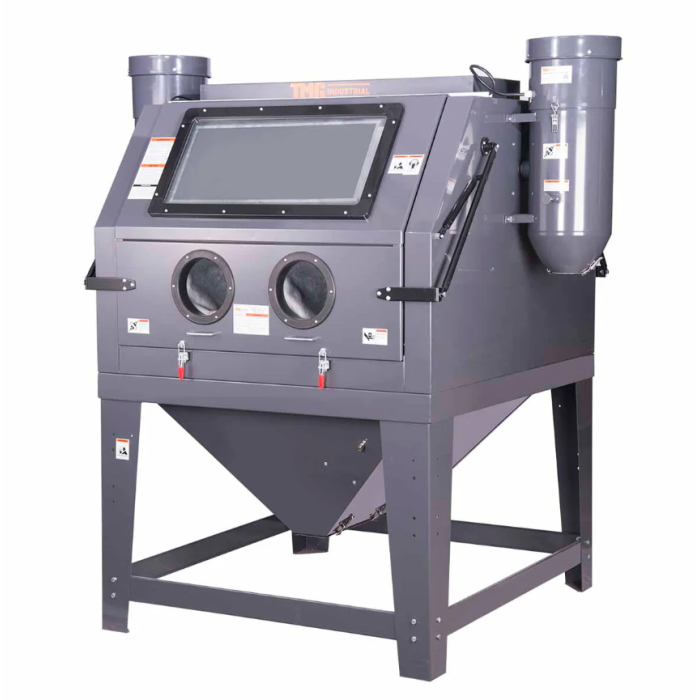

The TMG-ABC120 320 Gallon Dual Station Industrial Cabinet Sandblaster is engineered for maximum productivity and efficient surface preparation in demanding environments. Its dual operator capability and expansive internal workspace eliminate delays, allowing for seamless workflow on large or multiple items. The oversized front door facilitates easy loading of heavy and bulky components, while integrated dust collectors and LED lighting maintain optimal visibility.
With foot pedal controls for enhanced comfort and precise air pressure regulation, the TMG-ABC120 is an indispensable asset for heavy-duty cleaning, preparation, and modification tasks.
Features
Dual Operator Efficiency
Two operators can blast simultaneously, saving valuable time by covering twice the area at once.
Efficient Cleaning Power
Ideal for removing paint, rust, scale, and oxidation on a wide range of irregular surfaces.
Robust Vacuum System
A 120V AC, 60Hz, 10.5 Amp vacuum system powered by an ETL-certified electric motor ensures reliable collection of spent abrasive grit.
Generous Viewing Windows
Oversized viewing windows measuring 27" x 13" (69 x 33 cm) provide operators with a wide and clear field of view.
Window Protection System
Replaceable self-adhesive protective underlay helps preserve and extend the life of the viewing window.
Ample Working Capacity
Offers a 130 lb (59 kg) grate capacity and 8.5-gallon (32 L) abrasive media storage for continuous high-output blasting.
Reduced Operator Fatigue
Foot pedal control improves ease of use and significantly reduces hand fatigue for longer, more comfortable operation.
Specifications
Tank capacity: 320 gal/1200L
Vacuum: 120V AC, 60Hz, 10.5 Amp, ETL certified
LED Lights: 120V AC, 60Hz, 27W × 3
Working Pressure: 60–125 psi (414–862 kPa)
Air Inlet: 3/8" NPT
Included Nozzle Sizes: 1/4" (×2), 17/64" (×2)
Air Volume @ 90 PSI: 6–8 CFM for single operator; 12–16 CFM for dual operators
Grate Capacity: 130 lb (59 kg)
Abrasive Media Capacity: 8.5 gallons (32 L)
Working Space (H × W × D): 33" H × 46" W × 51" D (84 × 117 × 130 cm)
