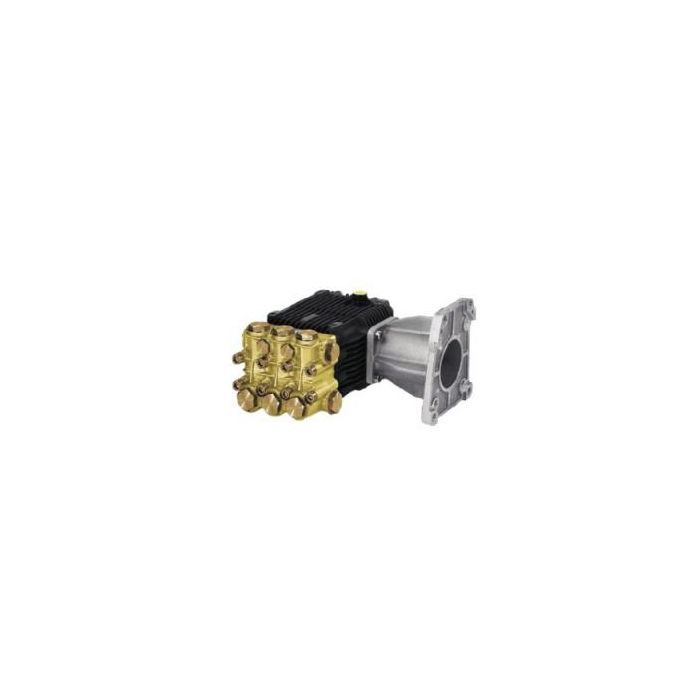

Annovi Reverberi GRKV4G35HV-F35 3400 RPM V VERSION 1" WITH TAPERED GAS ENGINE FLANGE
Brand New
this item condition is new
Special Order
usually ships within 10-15 business days
CA$859.99
Availability:
Special Order usually ships within 10 - 15 business days
Model No: GRKV4G35HV-F35
Website Product ID: 17058
Features
- MANIFOLD: High strength forged brass or nickel plated for long term use.
- BOLTS: Eight 10mm grade 8.8.
- PLUNGERS: A special thick solid ceramic for long life, strong durability and more resilience.
- CRANKCASE: Precision die-cast, large cooling fins and anodized for maximum heat dissipation. Bayonet style sight glass located in the rear and side cover, fill and side and bottom drain plugs.
- BEARINGS: Oversized premium tapered roller bearing for maximum life and load distribution.
- BEARINGS SUPPORTS: Precision die-cast and machined to assure concentricity and alignment.
- VALVES, SEATS, AND SPRINGS: Stainless steel with specially designed Ultra Form cages to provide long life and positive seating.
- SEALS AND V-PACKINGS: Continuously lubricating for extended life. Triple lip oil seal for assured crankcase seal.
- PLUNGER RODS: High strength stainless steel, for heavy duty use.
- CONNECTING RODS: Two-piece special alloy aluminum based material, oversized for maximum strength, load disbursement, and long life. Heavy pin area construction, for added load strength.
Specifications
- Max. Volume : 4.0 GPM
- Max. Discharge Pressure : 3500 PSI
- Max. Pump Speed: : 3400 RPM
- Shaft *TAPERED* Diameter: : 1” Hollow
- Maximum Horsepower Requirements: : 12.8 GHP
- Max. Fluid Temp.: : 160 degrees F.
- Inlet Ports (2): : 1/2" BSP
- Discharge Ports (2): : 3/8" BSP
- Drive Side: : Standard right
Includes
- (1) Annovi Reverberi GRKV4G35HV-F35 3500PSI, 4.0GPM Direct Drive *TAPERED SHAFT* Pump
