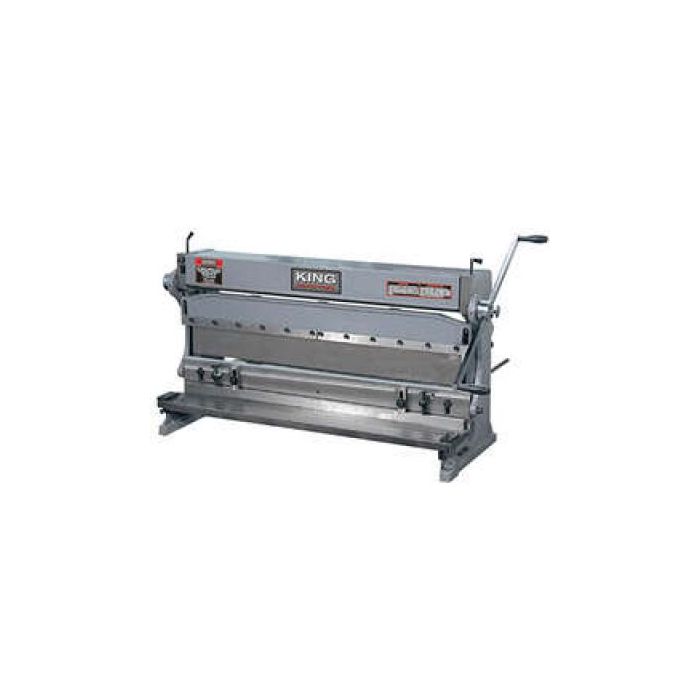

King KC-4020 40" x 20 Ga. Shear, Brake and Roll

Brand New


this item condition is new

Special Order


usually ships within 10-15 business days
CA$1,599.00
Model No: KC-4020
Website Product ID: 34348

Features

  • Sturdy cast-iron frame
  • Bed is precision ground for an accurate working surface
  • Dual edge, reversible shear blade
  • One female "V" shaped die
  • Slip Rolls are precision turned, ground and polished with wire grooves
  • Includes adjustable length stop, height stop block and extension bars with 90º angles

Specifications

  • SHEAR :
  • Maximum thickness (mild steel) : 20 Gauge
  • Maximum length : 40"
  • Material stop range : 3 3/4” - 30”
  • BRAKE :
  • Maximum thickness (mild steel) : 20 Gauge
  • Shut height : 4 1/2"
  • Material stop range : 1 1/4” - 28 1/2”
  • Male die sizes : 12",8",7",6",4",2",1"
  • SLIP ROLL :
  • Number of rolls : 3
  • Maximum thickness (mild steel) : 20 Gauge
  • Maximum length : 40"
  • Roller diameter : 1 11/16”
  • Minimum roll diameter : 21 7/8” ID/DI
  • Minimum radius : 15/16”
  • Wire groove diameters : 5/32”, 11/64”, 7/32”
  • Assembled dimensions (LxWxH)/weight : 50” x 30” x 26” / 387 lbs
  • Package dimensions (LxWxH)/weight : 52-3/4” x 17-3/4” x 28-3/8” / 453 lbs

Includes

  • (1) 40" x 20 Ga. Shear, Brake and Roll (KC-4020)
