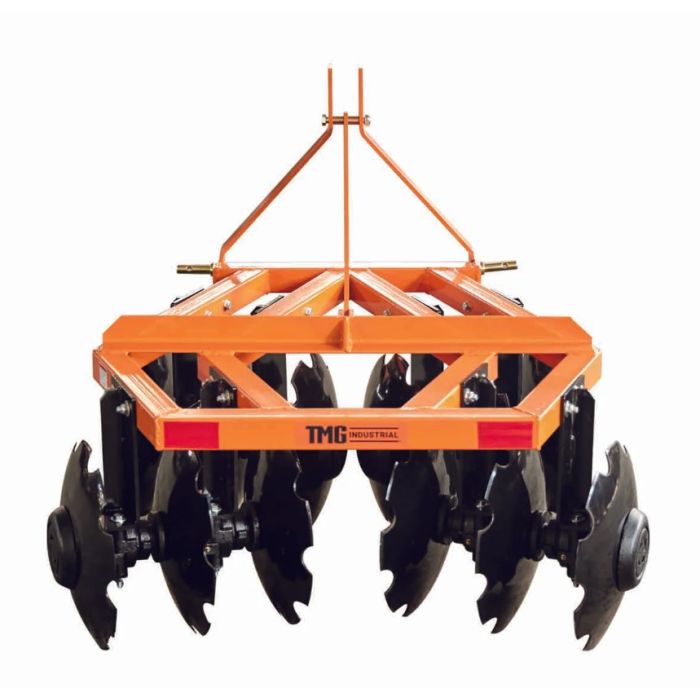

The TMG-TDH04 Notched Disc Harrow is the perfect tool for efficient and effective soil preparation. Designed for 3-point hitch Cat 1 tractors with 20-30 HP, it offers a 48" cutting width and (12) 16" notched discs.
Each disc is made from durable alloy steel, heat-treated and powder-coated for long-term durability and performance. With a robust steel tube frame, this harrow is also built to resist rust and corrosion.
Its fixed 22° cutting angle and “X" shaped gang axles ensure deep and thorough soil cultivation, making it ideal for preparing small food plots for composting and planting.
Features
CAT 1 3-Point Hitch for standard compact tractors
12 heat treated notched cutting discs made of 65Mn alloy steel
Optimized soil penetration with “X” shaped gang axles and fixed 22° Cutting Angle
HeavyDuty powder coated square steel tube frame
Sealed cast iron caps and 8 greaseable spools for seamless disc rotation
5–7" (127–178 mm) Working Depth for seedbed prep and residue mixing
Specifications
Product overall size: 46” x 48” x 42” (L x W x H)
Product net weight: 418 lb
Required horsepower: 20-30 HP
Hitch type: Standard 3-PT, Category 1
Cutting width: 48”
Fixed cutting angle: 22°
Cutting depth: 5”-7”
Frame material: 2-½” x 2-½” x ⅛” square tube steel
Square gang axle size: 18-¼” x 1” x 1” x 4pcs
Notched blades material: 65Mn hard alloy steel
Notched blades size: 16” x 3 mm/11 ga (dia. x thickness)
Notched blades quantity: 3 blades per gang, total 12 blades for 4 gangs
Disc blade spacing: 7-½”
Shipping Information
This product is packed in a metal crate shipping box
