Diamond files and sheets are used for tasks where conventional files fail due to the hardness of the material being worked on.
Diamond files and sheets are also used for processing hardened steel. The working temperatures are so low that no chemical wear occurs. This allows the higher hardness of the diamond grain to be exploited for a longer tool life.
Diamond needle files can be used generally in tool making.
RECOMMENDATIONS FOR USE
Only apply light pressure to the file, especially when using on workpiece edges.
Loaded diamond files can be cleaned in kerosene or anti-static plastic cleaner with a file brush. Alternatively, ultrasonic cleaning is also possible. Often, knocking the file against a hard object is sufficient.
Avoid using grease.
WORKPIECE MATERIALS
Abrasive materials
Case-hardened steels
Ferrite (magnetic material)
Glass
Graphite and synthetic carbon
Nickel or titanium-based superalloys
Steel materials with a hardness > 54 HRC
Technical ceramics
Tool steels
Tungsten carbide
APPLIATIONS
Deburring
Finishing
Leveling
Removing oxide layers
Surface work
Working on edges
Working on edges (chamfering, rounding)
Item number - 15108062
EDP no. - 04021
Grit size - D 126
Height - 1/16 Inch
Height - 1.8 mm
Length, coating - 2-3/4 Inch
Length, coating - 70 mm
Overall length - 5-1/2 Inch
Overall length - 140 mm
Shape - Knife shape
Width - 13/64 Inch
Width - 5 mm
Packaging unit - 1 piece

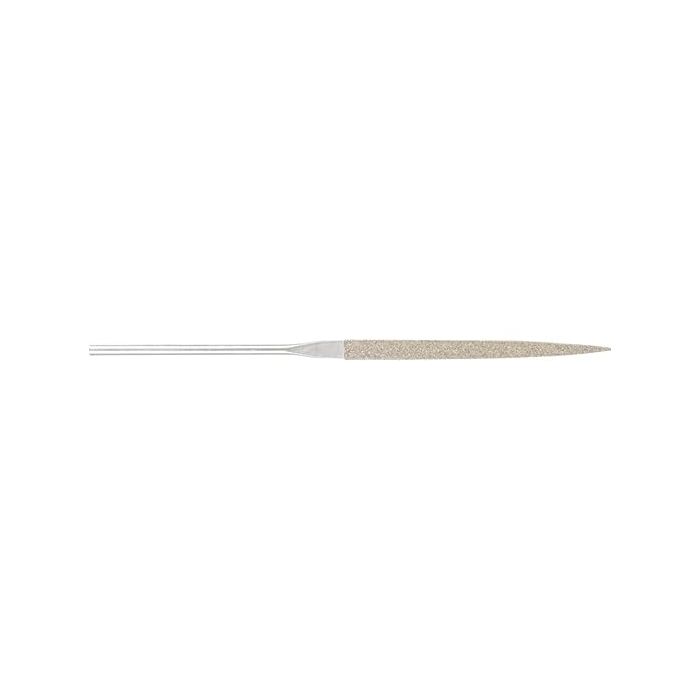

(1)5-1/2" Diamond Needle File - Knife, Medium Cut (04021)
