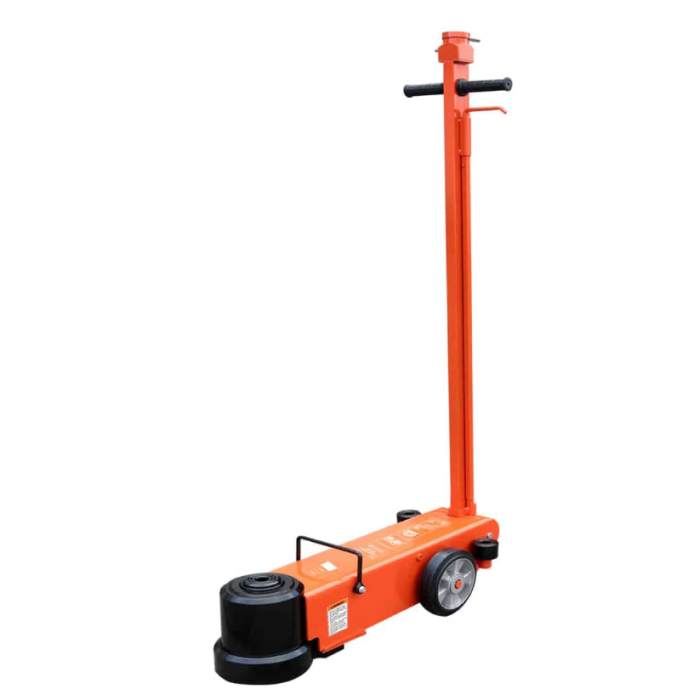

TMG Industrial TMG-AJT50 50 Ton Air Hydraulic Two Stage Truck Jack, 25 Ton Self-Retracting Ram, Adjustable 90°-180°

Brand New


this item condition is new

Special Order


usually ships within 10-15 business days
CA$1,999.00
Model No: TMG-AJT50
Website Product ID: 77551

The TMG-AJT50 50 Ton Air Hydraulic Two Stage Truck Jack is made with a heavy-duty steel construction that is built to last. With a payload capability of up to 50 tons, this jack can handle even the heaviest of loads. It is suitable for both home and business applications, making it a versatile addition to any garage or workshop.

The piston-ram is treated and polished to resist thinning over time, and the Y-style polyurethane sealing ring with a backup ring ensures long-lasting, leak-free operation. The 52-½” lengthened handle comes with air controls and an adjustable angle from 90°-180°.

One pull of the handle activates the self-retracting 25 ton capacity ram, which automatically retracts once the pressure is released without the need for manual intervention. The chrome-plated ram and sprayed paint finish help to prevent rust and corrosion, making this jack suitable for long-term, heavy, industrial use.

Features

  • Commercial-grade jack with a payload capability of up to 50 tons, making it suitable for heavy-duty applications in any residential or commercial environment
  • Treated and polished piston-ram resists thinning over time and uses a Y-style polyurethane sealing ring with a backup ring
  • Comes with a 54-½” long handle with air controls that save effort and make it easy to position most vehicles; handle can be adjusted from 90°-180°
  • Self-retracting 25 ton capacity ram that activates with one pull of the handle, which automatically retracts with the need for manual intervention
  • Includes two extension adapters, 2” and 3”, which increase versatility in the shop for specialty jobs by allowing you to lift higher and/or longer vehicles

Specifications

  • Capacity: 50 ton/25 ton (100,000 lb/50,000 lb)
  • Air pressure: 87-145 PSI
  • Minimum height: 9”
  • Lifting height:
    • 50 ton: 4”
    • 25 ton: 8”
  • Extension height: 2” & 3”
  • Rated Pressure: 4600 PSI
  • Net Weight: 174 lb
  • Material: All steel
  • This product is packed in 2 carton shipping boxes
  • Box A shipping dimensions: 33-1/2” x 13-1/4” x 11” (L x W x H)
  • Box B shipping dimensions: 58” x 12-1/2” x 3-1/4” (L x W x H)
  • Total shipping weight: 185 lb

Includes

(1) 50 Ton Air Hydraulic Two Stage Truck Jack, 25 Ton Self-Retracting Ram, Adjustable 90°-180°
