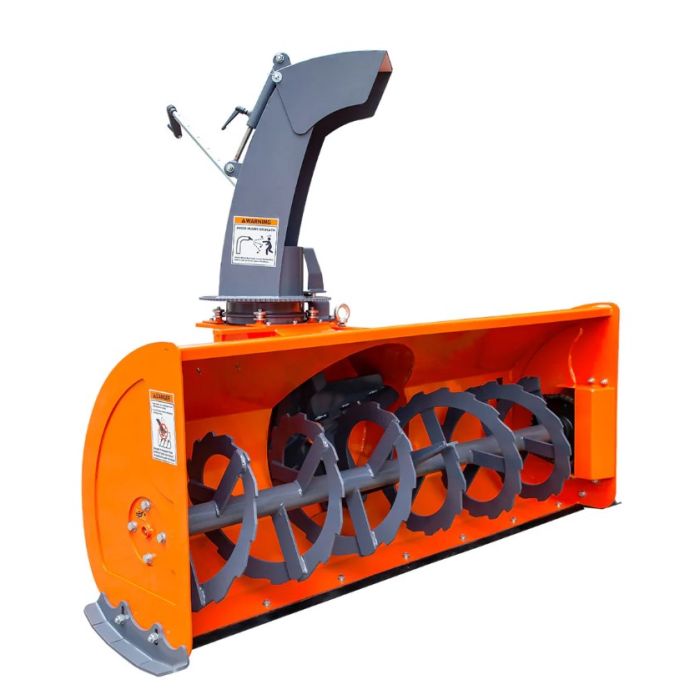

TMG Industrial TMG-TBS60 60" 3-Point Hitch Snow Blower, 25-65 HP, 24" Impeller, 360° Chute, CAT 1, CAT 2 and ASABE AD730 Quick Hitch

Brand New


this item condition is new

Special Order


usually ships within 10-15 business days
CA$3,999.00
Model No: TMG-TBS60
Website Product ID: 78595

The TMG-TBS60 3-Point Hitch Snow Blower is your heavy-duty, reliable solution for conquering winter's worst snowfalls. Engineered to handle any snow clearing task, this robust tractor attachment offers a substantial 60-inch working width and is compatible with 25-75 HP tractors. It includes a PTO drive shaft with clutch for protection against freezing damage.

The unit also features a rugged steel auger equipped with serrated teeth designed to effortlessly carve through snow, crush compacted layers, and eliminate thick slush. With durability in mind, the hardened snow shovel blades and boots ensure long-lasting, reliable performance. The adjustable skid shoe height allows for easy adaptation to various road conditions, ensuring a clean pass. Its large 24-inch diameter impeller is lightweight and outperforms traditional disk-shaped fans, effectively throwing snow far from the cleared path.

Hookup is simple thanks to the CAT 1 and CAT 2 hook-up and ASABE AD730 Quick Hitch compatibility. The 360° rotatable and adjustable snow chute offers dynamic discharge control in any direction. Furthermore, the secure splined connection between the fan and gearbox provides best-in-class reliability.

Features

  • Serrated Auger: Rugged steel auger with serrated teeth effortlessly drills through all types of snow, offering powerful removal and eliminating the need for manual shoveling.
  • Hitch Compatibility: Compatible with CAT 1 and CAT 2 hook-up, plus an ASABE AD730 Quick Hitch, this attachment easily connects and detaches from any compatible tractor.
  • Durable Blades and Boots: Hardened snow shovel blades and boots guarantee reliable and long-lasting use, which significantly minimizes maintenance and costly replacements.
  • Adjustable Skid Height: The adjustable skid shoe height allows operators to match the unit to diverse road conditions for a clean finish while preventing equipment damage.
  • 360° Snow Chute: The 360° rotating snow chute is easily rotatable via a hand crank handle from the driver's seat, allowing the operator to direct the snow exactly where needed.
  • 22" Impeller: Its lightweight, 22-inch diameter impeller design delivers superior performance over traditional disk-shaped fans, enhancing both speed and efficiency.
  • Splined Connection: A secure splined connection between the high-performance fan and the robust gearbox provides better reliability than traditional flat key connections.



Specifications

  • Mounting: 3-Point Hitch CAT 1 & CAT 2, ASABE AD730 Quick Hitch
  • Horsepower Range: 25-75 HP
  • PTO input: 540 RPM
  • Overall Width: 63"
  • Cutting Width: 60"
  • Overall Depth: 42.5"
  • Overall Height: 63"
  • Cutting Height: 26-1/2"
  • Number of Blades on Impeller: 4
  • Diameter of Impeller: 22"
  • Depth of Impeller Housing: 8"
  • Diameter of Auger: 15-3/4"
  • Auger Speed: 180 RPM
  • Diameter of Discharge Chute: 9"
  • Chute Rotation: 360° Hand Crank
  • Adjustable Chute Deflector: Yes
  • Adjustable Skid Shoes: Yes
  • Replaceable Cutting Edge: Yes

Shipping Information

This product is packed in a metal crate shipping box

  • Shipping dimension: 65" x 45" x 35" (L x W x H)
  • Shipping weight: 825 lb

Includes

(1) 60" 3-Point Hitch Snow Blower, 25-65 HP, 24" Impeller, 360° Chute, CAT 1, CAT 2 and ASABE AD730 Quick Hitch, TMG-TBS60
