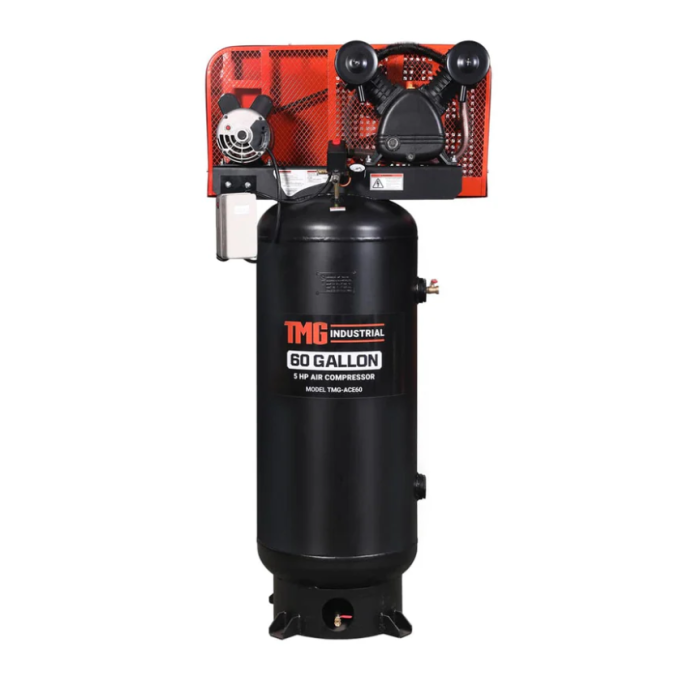

The TMG-ACE60 5 HP Stationary Electric Air Compressor is equipped with a 60 gallon air tank and operated by a CSA approved, double cast iron, oil-lubricated motor that houses a one-piece cast iron crankcase and full cast iron cylinder body. Excellent piece of equipment to power hoses and tools around an automotive shop, manufacturing warehouse or repair garage.
¼” and ½” quick connectors enable operators to use two tools at the same time, with an air outlet port for simple, rust-protective draining. This compressor is powered by a single phase heavy-duty 230V induction motor with a top operating speed of 3450 RPM so you never experience a drop in power.
Designed with a finned tube intercooler that offers maximum cooling action to prolong valve life, eliminate carbon buildup and contribute to better output and performance overall. Built to last in tough industrial settings long-term.
Features
Excellent piece of equipment to power hoses and tools like sanders, sprayers, nail guns and more around an automotive garage, warehouse or machine shop
Equipped with a 60 gallon ASME air tank that is filled by a single phase heavy-duty 230V induction motor that has a top operating speed of 3450 RPM
CSA approved, 5 HP, double cast iron, oil-lubricated motor that has a one-piece cast iron crankcase and full body cast iron cylinder body
¼” and ½” NPT quick connectors for simultaneous multiple tool use and air output port for manual draining to protect against rust and corrosion
Designed with a finned tube intercooler that provides maximum cooling, eliminates carbon buildup and prolongs valve life
Specifications
Electric motor: AC230V/60hz, single phase, 5HP
Induction motor speed: 3450 RPM
Maximum working pressure: 145 PSI
14.4 CFM at 40 PSI
12.4 CFM at 90 PSI
Air tank size: 60 gal ASME certified vertical tank
Tank fill time: <5 minutes
Noise level: 80 dB
(1) ¼” NPT quick connector
(1) ½” NPT valve
CSA approved
This product is packed in a metal crate shipping box
Shipping dimension: 38” x 24” x 80” (L x W x H)
Shipping weight: 460 lb
Includes
(1) 60 Gallon 5 HP Stationary Electric Air Compressor, 5 Min Fill Time, 230V Induction Motor, ASME Vertical Tank
