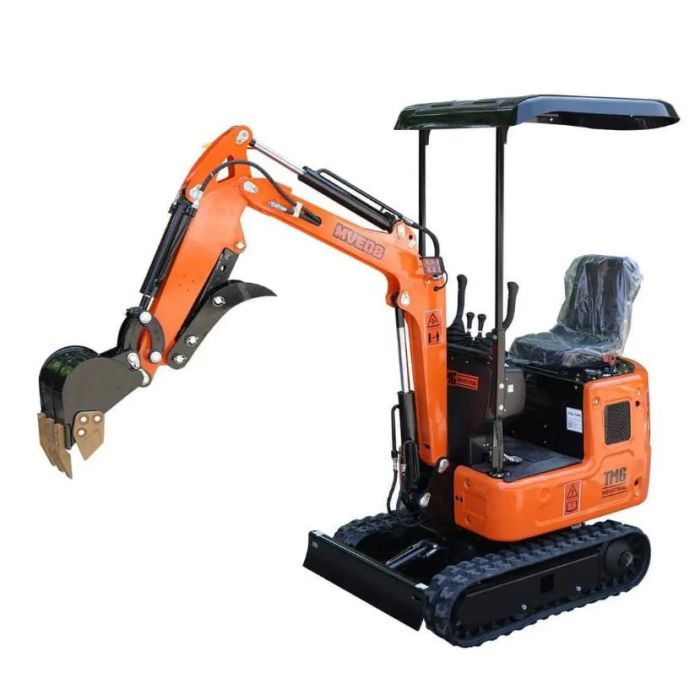

The TMG-MVE08 Mini Compact Excavator is a heavy-duty powerhouse packed into a small, easy-to-use package. Featuring a 15 HP air-cooled engine with EPA certification, this excavator is designed for both flexibility and safety.
The user-friendly operation panel makes for a quick learning curve, and the spacious operator area enhances comfort for all users. With an operating weight of 1900 lb and a maximum digging depth of 61-½", this backhoe-type excavator is perfect for tasks of all shapes and sizes.
Auxiliary hydraulics come standard, providing power for multiple attachments. The compact design ensures reduced dead angles, enhancing worker safety during operation. Ideal for tight spaces and versatile projects. Includes a dozer blade and optional mechanical thumb.
Features
Powered by a reliable 15 HP air-cooled engine with EPA certification
Equipped with a convenient and simple-to-use operation panel; minimal training required
Safety is prioritized with reduced dead angles to protect workers and prevent accidents
Spacious operator area is ergonomically designed for maximum comfort
Includes a standard dozer blade with the option for a mechanical thumb attachment
Specifications
Operating weight: 1900 lb
Standard bucket capacity: 0.5 cu-ft
Working device form: Backhoe
Max. travel speed: 1.8 km/h
Max. gradability: 30°
Track ground pressure: 25.53 kpa
Hydraulic oil tank capacity: 12.5 L
Fuel tank capacity: 5.5 L
Max. tractive force: 6.8 kN
Product net weight: 1900 lb
The name of the manufacturer of the hydraulic pump is Parker, with a flow rate of 21.6L/min.
Operating Range
Max. digging depth: 61-½”
Overall operating height(fully raised): 100”
Max. digging radius: 114”
Max. unloading height: 75”
Min. turning radius: 61”
Max. lifting height dozer blade: 6”
Max. depth dozer blade: 6”
Dipper boom digging force: 6.1 kN
Bucket digging force: 9.2 kN
Main Dimensions
Track length: 47”
Upper chassis ground clearance: 15”
Counterweight turning radius: 32”
Chassis width: 36”
Track width: 7”
Track height: 12”
Transportation length: 85”
Height of seat to ground: 40-½”
Overall height: 87”
Engine
Single cylinder, air-cooled, 4-stroke, OHV
Displacement: 420 cc
Max. out power: 8.6kw/3600 RPM
Start type: Electric start w/battery included
Oil capacity: 1.16 US Qt (1.2 L)
Engine oil type: 10W-30
Includes
(1)TMG-MVE08 Compact Mini Excavator, 15 HP EPA Certification Engine, 61-½" Max. Digging Depth, 1900 Lb Operating Weight
