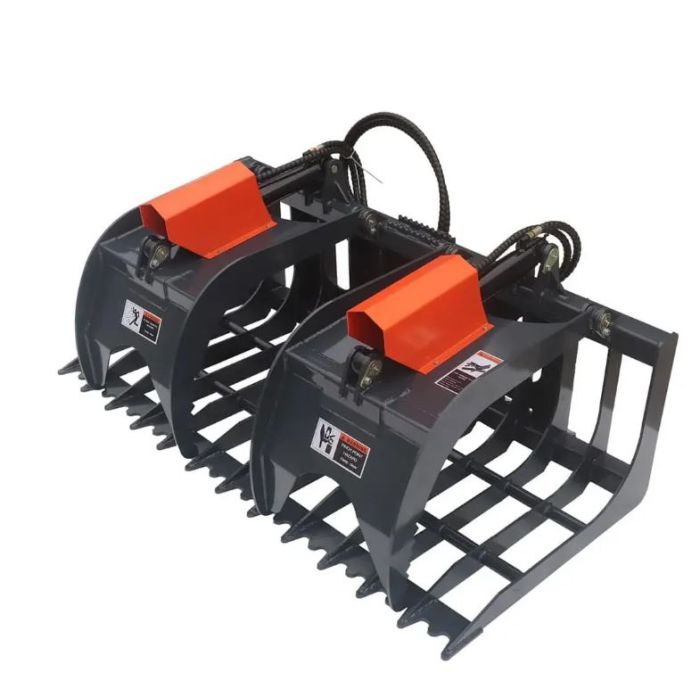

TMG Industrial TMG-SG72 72" Skid Steer Rock Skeleton Grapple Attachment

Brand New


this item condition is new

Special Order


usually ships within 10-15 business days
CA$3,499.00
Model No: TMG-SG72
Website Product ID: 77740

The TMG-SG72 Skid Steer Skeleton Rock Grapple features twin hydraulic cylinder arms that can produce a grappling capacity of up to 2500 lb. A versatile attachment for your skid steer that can be used for a variety of applications including brush/log pick up, recycling, rock raking, scrap metal sorting and any sort of moving chore around your acreage, farm or job site.

Equipped with a universal mount for easy hookup to your skid steer and quick, efficient workflow. A flat bottom build slides effortlessly over the ground leaving the surface undisturbed, and 3" x 3" primary frame beams create an overall heavy-duty construction that will work through the toughest projects and ensure you get the job done.

72" of working width offers diverse grappling capabilities on your farm, commercial property or worksite. The ½" serrated cutting edges and skeleton tine bottom design make it easy for loose debris to sift through so you can efficiently manage the transport of bulkier material. Built to last with greasable pins and bushings for easy routine maintenance, and comes with included hydraulic hoses.

We also carry a larger model of this skeleton grapple attachment: TMG-SG84

Features

  • Flat bottom slides over the ground not to damage the surface
  • 3" x 3" primary frame beams
  • Dual 3000 PSI hydraulic cylinders
  • Cylinder guards included
  • Greaseable pivot pins with bolt-locked design
  • Universal skid steer mount

Specifications

  • Compatible with 30-70 HP skid steers
  • Overall dimension: 73” (L) x 39” (W) x 29” (H)
  • Working width: 72”
  • Grapple capacity: 2500 lb
  • Dual cylinders: 2-½” bore x 8” stroke
  • Tine spacing: 6”
  • Tine thickness: ½”
  • Grapple arm opening: 36”
  • Hydraulic pressure: 3000 PSI
  • Flow rate: 12-24 GPM
  • Twin hydraulic cylinder grapple arms with protective guards
  • Universal skid steer mount

Includes

(1)TMG-SG72  72" Skid Steer Rock Skeleton Grapple Attachment, Universal Mount, 36" Arm Opening, 6" Tine Spacing, 2500 lb Weight Capacity
