Bosch RA1128 8 pc. Template Guide Set

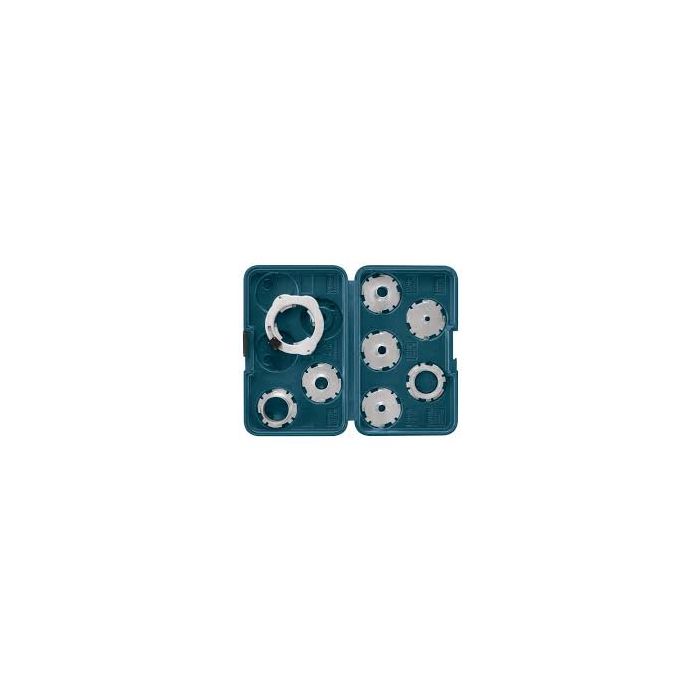

main product photo

Pictures are only for respresentation, actual product may vary, the Model #/SKU/Part number listed above is what you will receive

Brand New


this item condition is new

Special Order


usually ships within 10-15 business days
CA$45.49
Model No: RA1128
Website Product ID: 68765

The Bosch RA1128 8 pc. Template Guide Set features six popular router template guides, including large and small dovetail router guides and two radius hinge guides. It also includes the Bosch RA1126 Quick-Change Template Guide Adapter plus the RA1100 Interface for Threaded Template Guides. The quick-change adapter accepts Bosch RA-series template guides. It also accepts the RA1100 interface piece, which allows the template guide adapter to accept Porter-Cable® and similar common threaded template guides (and reducer inserts) that that are sized for a 1-3/8” counter-bore. This template guide set works with many Bosch routers, including the 1613AEVS, 1617-, 1618-, 1619- and MR23-Series routers, as well as the plunge bases for Bosch palm routers.

Features

  • Versatile array of template guides – features six popular router template guides, including large and small dovetail router guides and two radius hinge guides
  • Quick-change template guide adapter – allows fast toolless change of Bosch router template guides (sold separately in a wide array of sizes)
  • Compatibility – works with the Bosch 1613AEVS, 1617-, 1618-, 1619- and MR23-Series routers, as well as with the plunge bases for Bosch palm routers
  • Enhanced versatility from RA1100 interface piece – This interface piece allows the template guide adapter to also accept Porter-Cable® and similar common threaded template guides (and reducer inserts) that fit into a 1-3/8 In. counter-bore

Specifications

  • Material: Metal
  • Size: 9/64 In. x 5/16 In. x 17/64 In., 9/64 In. x 7/16 In. x 3/8 In., 7/16 In. x 1/2 In. x 13/32 In., 1/2 In. x 5/8 In. x 17/32 In., 3/16 In. x 3/4 In. x 21/32 In.
  • Works With Mid-Size and Large Routers: MRC23EVSK, MRF23EVS, MRP23EVS, 1613AEVS, 1617-, 1618- and 1619-Series Routers
  • Bases for Mid-Size and Large Routers: MRF01, MRP01, RA1161, RA1162, RA1166
  • Palm Router Plunge Bases: PR011, PR111
  • Quick-Release Template Guides: RA-Series Template Guides
  • Adapter for Threaded Template Guides: RA1100

Includes

Includes

  • RA1126 -- Quick-release template guide adapter
  • RA1103 -- Template guide for small dovetail joints (9/64 In. x 5/16 In. x 17/64 In.) [protrusion below subbase x outer width of bushing x inner width of bushing]
  • RA1105 -- Template guide for large dovetail joints (9/64 In. x 7/16 In. x 3/8 In.) [protrusion below subbase x outer width of bushing x inner width of bushing]
  • RA1113 -- Template guide for 1/4-In. radius hinges (1/2 In. x 5/8 In. x 17/32 In.) [protrusion below subbase x outer width of bushing x inner width of bushing]
  • RA1121 -- Template guide for 5/8-In. radius hinges (7/16 In. x 1-3/8 In. x 1-19/64 In.) [protrusion below subbase x outer width of bushing x inner width of bushing]
  • RA1109 -- Template guide (7/16 In. x 1/2 In. x 13/32 In.) [protrusion below subbase x outer width of bushing x inner width of bushing]
  • RA1115 -- Template guide (3/16 In. x 3/4 In. x 21/32 In.) [protrusion below subbase x outer width of bushing x inner width of bushing]
  • RA1100 -- Interface for threaded template guides (and reducer inserts) that fit into a common 1-3/8 In. counter-bore, such as those sold by Porter-Cable® and others
  • Case
