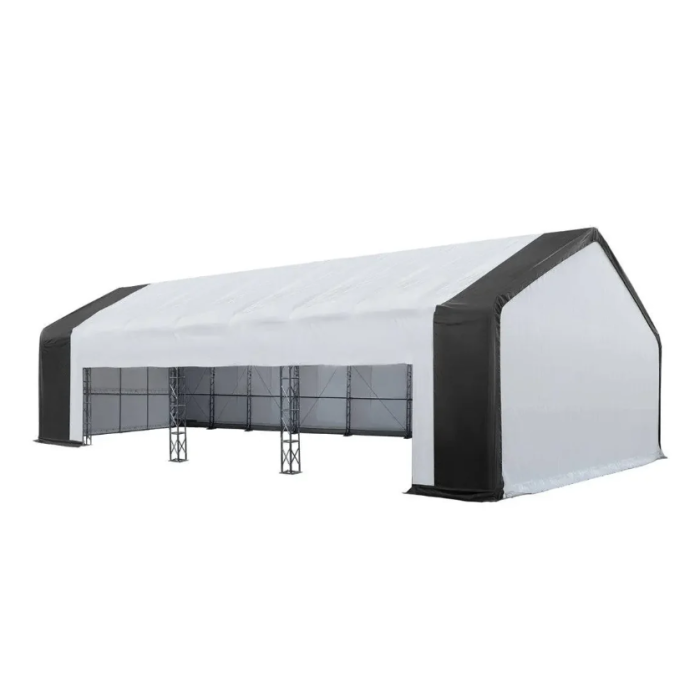

TMG Industrial TMG-DT3380 80’ x 33’ Dual Truss Storage Shelter Workshop, (3) 19’ Wide Drive-Through Openings, Scaffolding-Style Door Frame Support

Brand New


this item condition is new

Special Order


usually ships within 10-15 business days
CA$23,999.00
Model No: TMG-DT3380
Website Product ID: 78100

The TMG-DT3380 Dual Truss Storage Shelter Workshop is a robust solution designed with feedback from our farming customers. This versatile workshop, equipped with three 19’ wide drive-through openings on a single side, coupled with two enclosed end walls, is engineered to cater to your diverse agricultural and workyard needs. Ideal for accommodating oversized machinery such as combines or serving as a practical space for oilfields, mining, construction sites, or even as a sawing shed with portable sawmills.

Built for durability, the shelter boasts a sturdy dual truss frame and heavy-duty galvanized steel tubes on all trusses and purlins. The rectangular scaffolding-style support columns ensure a resilience structure that can hold its own, even in demanding work environments. With a quick relative assembly time and cost-effectiveness compared to similar structures, this model is a valuable investment that will serve you well for years to come.

The commercial-grade 21oz PVC cover, coloured in a clean white with grey trims, offers superior protection against tearing, leaking, and chemical corrosion. The shelter is fire-retardant, UV-protected, and waterproof, guaranteeing a dry and organized space.

Features

  • Three 19’ wide drive-through openings on a single side of the shelter makes it an ideal choice for farms, construction sites, and other industrial applications
  • Heavy-duty galvanized steel tubes on all trusses and purlins, along with robust rectangular scaffolding-style support columns make this shelter built to last
  • This shelter can be assembled quickly and is a time-efficient solution for those seeking a swift setup without compromising on quality, saving both time and labour
  • Delivers a sizable and durable space without breaking the bank, making it an economical choice for various industrial and agricultural uses
  • A spacious footprint, 20' peak ceiling height, and side opening clearances of 19’ (W) x 9’ (H), this workshop offers a generously wide and open interior
  • 21oz PVC cover provides exceptional protection against tearing, leaking, and chemical corrosion while also being fire-retardant, UV-protected, and waterproof
  • Beyond storage, the shelter’s versatile design accommodates a range of applications, making it an ideal space for workshops or equipment maintenance cross-industry

Specifications

  • Foundation size required: 24500mm(80.4') (W) x 10360mm(34') (L)
  • Truss spacing: 10’
  • Sidewall height at arch: 11’
  • Peak ceiling height: 20’
  • Side opening clearance (each): 19’ (W) x 9’ (H)
  • Door clearance: 13’(W) x 13’(H)
  • Truss and purlin tubes: ⌀1.9” – 15 GA (approx.)
  • Support columns: 18’’ x 14’’
  • Cover: 21oz PVC, white w/grey trims
  • Galvanized steel tubes
  • Rectangular scaffolding-style supported columns
  • Packed in 3 metal crate shipping boxes
  • Box A shipping dimension: 136” X 45” X 49”
  • Box B shipping dimension: 125” x 45” x 49”
  • Box C shipping dimension: 125” x 45” x 49”
  • Shipping weight: 6500 lb

Includes

(1) 80’ x 33’ Dual Truss Storage Shelter Workshop, (3) 19’ Wide Drive-Through Openings, Scaffolding-Style Door Frame Support, TMG-DT3380
