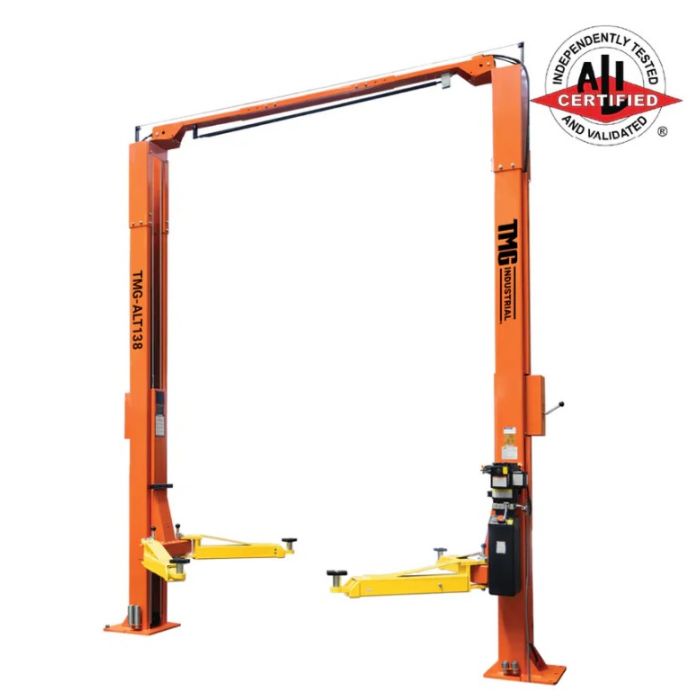

TMG Industrial TMG-ALT138 ALI Certified 10,000 lb Two-Post Overhead Auto Lift, Symmetric Arms, 79" Lift Height, 166" Cross Beam

Brand New


this item condition is new

Special Order


usually ships within 10-15 business days
CA$6,499.00
Model No: TMG-ALT138
Website Product ID: 79439

The ALI Certified TMG-ALT138 Two-Post Overhead Auto Lift with a dual-purpose convertible arm design is engineered for commercial shops, professional garages, and personal workshops that need a durable, versatile, and safe lifting solution. With a 10,000 lb capacity and up to 79" of lift height (with adapters), it easily handles most cars, trucks, and SUVs for a wide range of maintenance and repair work.

This ALI-certified model features extended 167" columns to accommodate taller vehicles. Its overhead crossmember design protects hydraulic, cable, and electrical lines while providing greater structural stability, balance, and a clear workspace between the columns.

Heavy-duty symmetric telescoping arms with auto restraints and a dual hydraulic chain-drive system ensure precise, reliable performance. Built for long-term durability, the TMG-ALT138 delivers dependable performance, safety, and value for both professional and personal use.

Features

Raised crossbar height offers generous space for taller vehicles

Symmetric arms provide balanced lifting support and stability

10,000 lb lift capacity compatible with most cars, trucks, and SUVs

Up to 73″ lift height (79″ with adapters), enabling easy access for maintenance

Three column-to-column width options adapt to varying worksites

Dual lock mechanism enables secure, ergonomic operation



Specifications

  • ALI Certified: Yes
  • Load Capacity (lb): 10,000 lb
  • Maximum Lift Height: 73" (Without Adapters), 79" (With 6" Adapters)
  • Minimum Height from Ground: 4"
  • Number of Adapter: 4 x 3 sets
  • Adapter Height (inch): 1.5", 3", 6"
  • Overall Height (inch): 166"
  • Overall Width (inch):
    140" (Narrow Spacing), 146" (Medium Spacing), 152" (Wide Spacing)
  • Column to Column Width:
    111" (Narrow Spacing), 117" (Medium Spacing), 123" (Wide Spacing)
  • Drive Thru Clearance:
    100" (Narrow Spacing), 106" (Medium Spacing), 112" (Wide Spacing)
  • Overhead Stop Height: 158"
  • Front Arm Reach: 37" - 60"
  • Rear Arm Reach: 37" - 60"
  • Arm Spec:
    Rear Section: 120 x 110 x 6 mm, Middle Section: 100 x 90 x 8 mm, Front Section: 80 x 70 x 8 mm
  • Column Spec: 288 x 175 x 6 mm
  • Column Material: Heavy-duty Carbon Steel
  • Safety Cable Spec:
    10 NAT 6 x 19s + IWS 1870 (Dia. 10 mm, Steel Core Wire, Tensile Strength 1870 MPa)
  • Safety Cable Length: 11.3 m
  • Travel Time: Lift in 60 Sec; Lower in 45 Sec

Hydraulic Power Unit:

  • Power: 208 - 240V AC, 3 HP, Single Phase
  • Rated Current: 16 A
  • CIPR (Cubic Inches Per Revolution): 0.1288
  • Pump RPM: 2880 / 3450
  • Hydraulic Pressure: 2450 PSI
  • Hydraulic Port: 9/16 - 18UNF
  • Tank Capacity: 3.17 Gal
  • Hydraulic Oil: AW32, AW46
  • CETL Certified: Yes

Shipping Information

  • This product is packed in 2 shipping boxes
  • Box A shipping dimensions: 142" x 22" x 38" (L x W x H)/360 x 57 x 96 cm
  • Box B shipping dimensions: 35" x 11" x 13" (L x W x H)/90 x 28 x 32 cm
  • Total shipping weight: 2065 lb (936 kg)

Includes

(1) ALI Certified 10,000 lb Two-Post Overhead Auto Lift, Symmetric Arms, 79" Lift Height, 166" Cross Beam, TMG-ALT138
