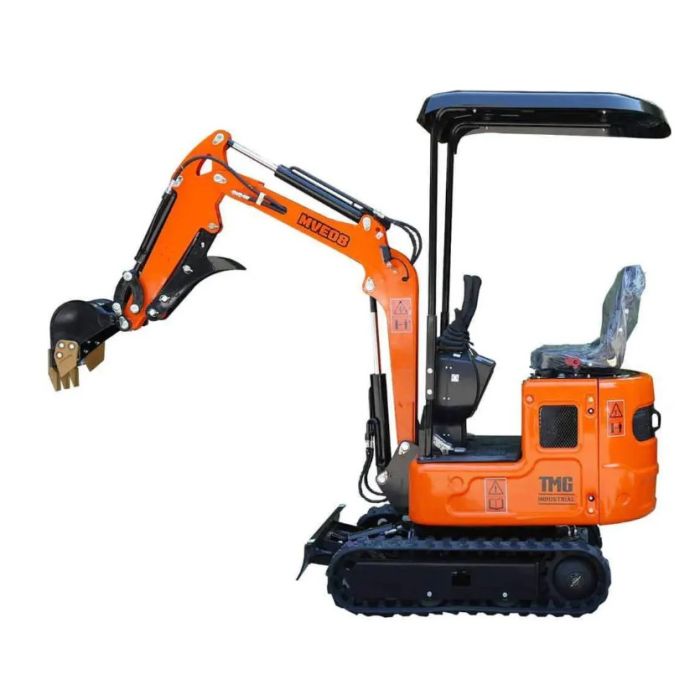

The TMG-MVE08 Mini Compact Excavator is a heavy-duty powerhouse packed into a small, easy-to-use package. Featuring a reliable 13.5 HP Briggs & Stratton XR Series air-cooled gas engine with EPA certification, this excavator is designed for both flexibility and safety.
The user-friendly operation panel makes for a quick learning curve, and the spacious operator area enhances comfort for all users. With an operating weight of 1900 lb and a maximum digging depth of 61-½", this backhoe-type excavator is perfect for tasks of all shapes and sizes.
Auxiliary hydraulics come standard, providing power for multiple attachments. The compact design ensures reduced dead angles, enhancing worker safety during operation. Ideal for tight spaces and versatile projects. Includes a dozer blade and mechanical thumb.
Features
Powered by 13.5 HP Briggs & Stratton XR Series Gas Engine with EPA certification
Equipped with a convenient and simple-to-use operation panel; minimal training required
Safety is prioritized with reduced dead angles to protect workers and prevent accidents
Spacious operator area is ergonomically designed for maximum comfort
Includes a standard dozer blade and a mechanical thumb attachment
Specifications
Operating weight: 1,900 lb
Standard bucket capacity: 0.5 cu ft
Working device form: Backhoe
Maximum travel speed: 1.8 km/h
Maximum gradability: 30°
Track ground pressure: 25.53 kPa
Hydraulic oil tank capacity: 12.5 L
Fuel tank capacity: 5.5 L
Maximum tractive force: 6.8 kN
Mechanical thumb: Included
Hydraulic pump brand: Parker
Hydraulic flow rate: 21.6 L/min
Operating Range:
Maximum digging depth: 61-1/2"
Overall operating height (fully raised): 100"
Maximum digging radius: 114"
Maximum unloading height: 75"
Minimum turning radius: 61"
Maximum lifting height, dozer blade: 6"
Maximum depth, dozer blade: 6"
Dipper boom digging force: 6.1 kN
Bucket digging force: 9.2 kN
Main Dimensions:
Track length: 47"
Upper chassis ground clearance: 15"
Counterweight turning radius: 32"
Chassis width: 36"
Track width: 7"
Track height: 12"
Transportation length: 85"
Seat height from ground: 40-1/2"
Overall height: 87"
Engine:
Model: Briggs & Stratton XR Series, Model #25T2
Type: Single-cylinder, air-cooled, 4-stroke, OHV
Displacement: 420 cc
Maximum output power: 13.5 HP / 3600 RPM
Start type: Electric start with battery included
Oil capacity: 6.6 L
Engine oil type: 10W-30, 1.1 L
Shipping:
Shipping dimension: 110” x 36” x 87” (L x W x H) Shipping weight: 1,795 lb(w/packaging)
Includes
(1) Compact Mini Excavator, 13.5 HP Briggs & Stratton XR Gas Engine, 61-½" Max. Digging Depth, 1900 Lb Operating Weight TMG-MVE08
