Milwaukee 2206-20NST Fork Meter for HVAC/R (NIST)

main product photo

Pictures are only for respresentation, actual product may vary, the Model #/SKU/Part number listed above is what you will receive

Brand New


this item condition is new

Special Order


usually ships within 10-15 business days
CA$334.99
Model No: 2206-20NST
Website Product ID: 73042

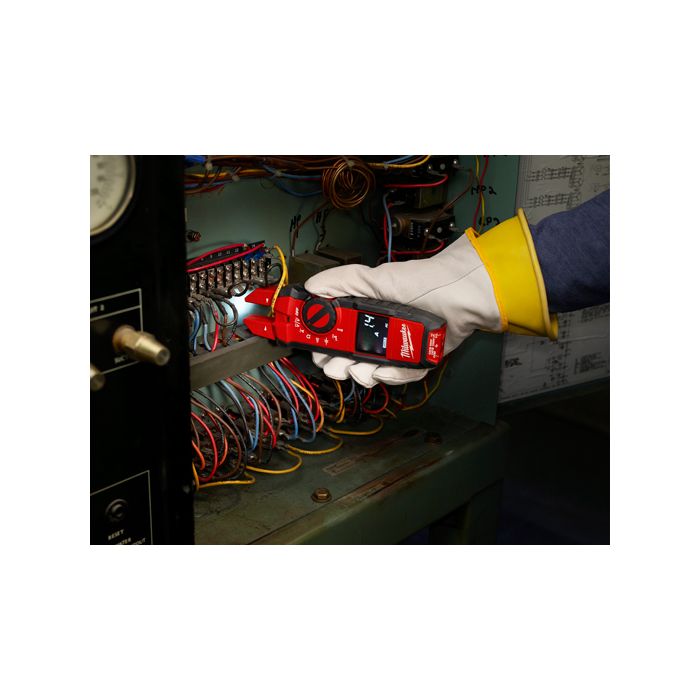

The Milwaukee Fork Meter for HVAC/R (NIST) is a heavy duty True-RMS electrical tester for professional residential, commercial and industrial applications. The 2206-20 is five tools in one providing current measurement, temperature measurement, voltage measurement, voltage detection and task lighting. In addition, the new tool provides a wide 0.63” fork opening, high 200amp current range and a high contrast white-on-black display. A NIST Certificate of

Features

  • Measures up to 200 amps, Wide 0.63” jaw opening
  • Wide Voltage range to 1000 volts AC /DC
  • True-RMS for accurate measurement in all applications
  • Built-In Voltage Detector and LED Work Light
  • Thermocouple (dual banana) input for contact temperature measurement
  • 600 uA DC for Flame Rectification
  • High Contrast, White on Black Display with Backlight for easy reading
  • Rugged over-molding increases durability and user grip

Specifications

  • Tool Warranty 5 Years
  • Battery Type Alkaline (AA)
  • Display Type White on Black LCD
  • Switch Type Dial
  • Length 8"
  • TRMS Yes
  • Safety Rating CAT IV 600V / CAT III 1000V
  • Current AC 200A
  • Microamps DC 1,000μA
  • Voltage AC DC 1000V
  • Resistance 40MΩ
  • Continuity Audible
  • Capacitance 1,000μF
  • Contact Temperature -40° F to 752° F (-40° C to 400° C)
  • Display Backlight Yes
  • Non Contact Voltage Yes
  • LED Work Light Yes
  • Rugged Over molding Yes
  • Fork Opening .63"

Includes

(1) Fork Meter for HVAC/R (NIST)(2206-20NST)

(1) Dual Banana Thermocouple

(2) AA Batteries

(1) Manual

(1) Test Lead Set

(1) NIST Certificate of Calibration with Data
