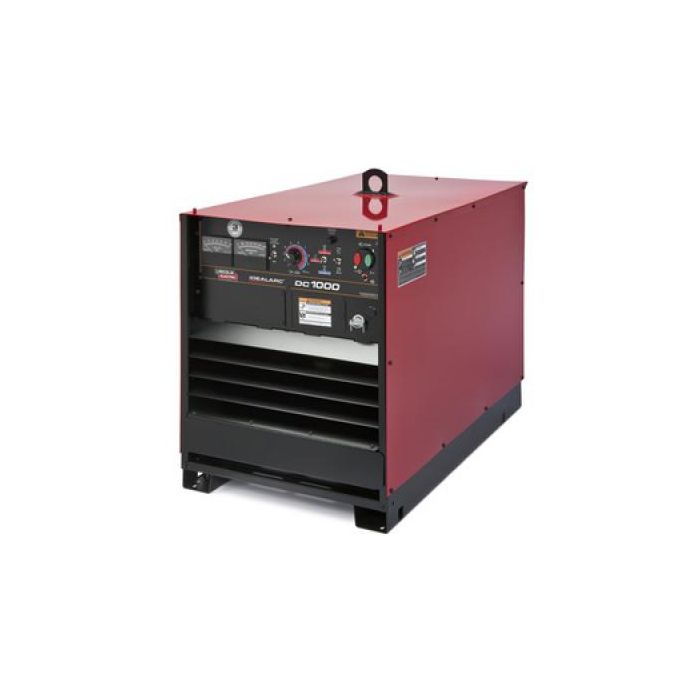

Lincoln Electric K1386-3 IDEALARC® DC-1000 SUBARC WELDER

Brand New


this item condition is new

Special Order


usually ships within 10-15 business days
CA$31,999.99
Model No: K1386-3
Website Product ID: 35748

Features

  • The DC-1000 offers 1300 amps of smooth DC output, combining pure welding power with multi-process flexibility for semiautomatic and automatic welding.
  • 500 amp output connections - provide enhanced arc characteristics for low amperage submerged arc and MIG welding procedures.
  • Single range control - for precise output control and easy operation.
  • Terminal strip and output studs - for remote connections and cable.
  • Low profile case - allows installation under a workbench and for stacking up to 2 machines to conserve floor space.
  • Removable side panels - for easy access to internal parts.
  • Internal components - including windings, rectifiers and circuit boards, are coated to protect against the effects of moisture and corrosion.
  • Seven-year warranty - on power rectifier.

Specifications

  • Input Power : 230/460/3/60
  • Rated Output : 1000A/44V/100%
  • Input Current : 193/96.5A
  • Output Range : 150-1300A DC 16-46V
  • DIMENSIONS (H X W X D) : 30.7 in x 22.25 in x 39 in (781 mm x 565 mm x 991 mm)

Includes

  • (1) IDEALARC® DC-1000 SUBARC WELDER
