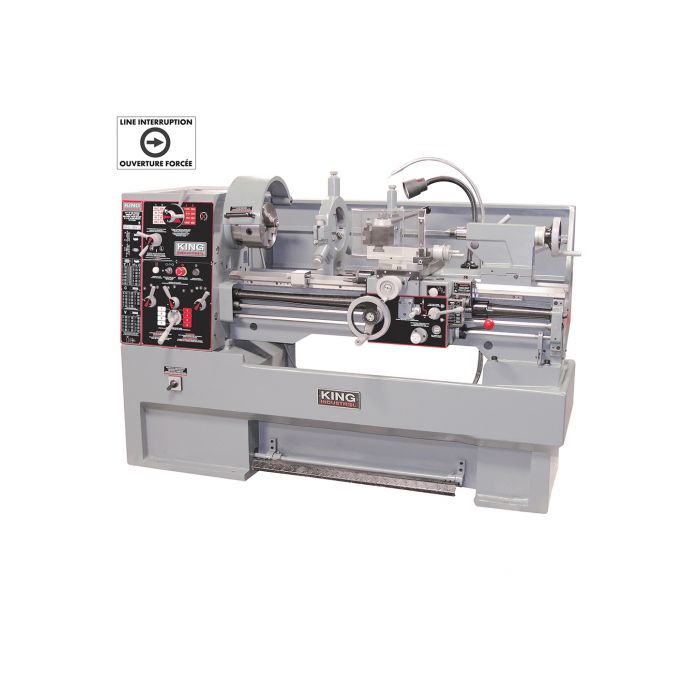

King KC-1640ML/KM-055 KING 16" x 40" high precision Toolroom metal lathe with taper attachment
Brand New
this item condition is new
Special Order
usually ships within 10-15 business days
CA$17,499.00
Availability:
Special Order usually ships within 10 - 15 business days
Model No: KC-1640ML/KM-055
Website Product ID: 76500
Features
- Powerful 600V, 3 phase, 2 speeds 4 HP motor
- Safety features include line interruption switch system, chuck safety guard with limit switch protection, lead screw protectors and tool post safety guard
- Totally enclosed gearbox allows cutting Inch, Metric, Whitworth, Modular and Diametrical threads
- Guideway is all induction hardened and precision ground
- Spindle foot brake incorporated in the full length cabinet stand
- Comes complete with 8"-3 jaw chuck with inside and outside jaws, 12"-4 jaw chuck, quick change tool post and two 3/4” tool holders, steady and follow rests with roller guides, 14" (D1-6) camlock face plate, MT #4 standard dead centre, MT #4 carbide tipped dead centre, MT #4 to MT #6 spindle sleeve adapter, halogen light, coolant system, full length splash guard, manual micrometer carriage stop, tool box and wrenches
Specifications
- SWING OVER BED 16"
- SWING OVER CROSS SLIDE 10"
- DISTANCE BETWEEN CENTERS 40"
- SWING OVER GAP 22"
- WIDTH OF BED 10"
- SPINDLE BORE DIAMETER 2"
- TAPER IN SPINDLE BORE MT #6
- RANGE OF SPINDLE SPEEDS 16 (45-1,800 RPM)
- NUMBER AND RANGE OF INCH THREADS 45 (2-72 TPI)
- NUMBER AND RANGE OF METRIC THREADS 39 (0.2 - 14 mm)
- NUMBER AND RANGE OF MODULAR PITCHES 18 (0.3 - 3.5 MP)
- NUMBER AND RANGE OF DIAMETRICAL PITCHES 21 (8 - 44 DP)
- LONGITUDINAL FEED RANGE 0.002" - 0.067"
- TRANSVERSAL FEED RANGE 0.0011" - 0.038"
- TAILSTOCK CENTER TAPER/TRAVEL MT #4, 4-3/4"
- MOTOR (2 SPEED) 4 HP/ 5 Amp., 600V, 3 phase, 60 Hz
- COOLANT PUMP MOTOR 1/8 HP/ 600V, 3 phase, 60 Hz
- ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT 76-3/8" x 33-1/2" x 51-1/4" / 2,975 lbs
- PACKAGING DIMENSIONS (LXWXH) / WEIGHT 82" x 33" x 65" / 3,250 lbs
- UPC 7 72995 01174 2
Includes
(1)KC-1640ML/KM-055
