Stabila 03165 LA-5PG: 5-point laser, 5-piece set

Brand New


this item condition is new

1 In Stock


this item is currently in stock
CA$379.99
Availability: 1 In Stock. Pay today, ships today
Model No: 03165
Website Product ID: 69768

The self-leveling, STABILA LA-5P G, projects 5-bright GREENBEAM laser dots, visible up to 60 ft. Layout points can be transferred and right angles can be set in an instant. It features a mechanical on/off switch and pendulum lock. This durable and compact, pouch laser is excellent for framing walls, interior and exterior. Builders will appreciate the ability to work directly against wood plates and metal track, in all conditions, even in brightly lit spaces. The highly efficient LA-5P G laser is powered by 3-AA batteries, providing you up to 15 hours of constant run time.

Features

  • The self-leveling STABILA LA-5P G Set features 5-bright GREENBEAM laser, pouch, removable framing base, target plate, metal wall mount plate and batteries.
  • Quickly transfer layout points and set right angles, even in brightly lit conditions.
  • The LA-5P G comes with a v-groove rare earth magnet built into the housing for secure attachment to metal.
  • 5 green bright and tight dots are visible up to 60ft.
  • Up dot accuracy tolerance: Will not exceed 3/16 in @ 50ft.
  • Down dot accuracy tolerance: Will not exceed 1/4 @ 50ft.
  • Level dot accuracy tolerance: Will not exceed 3/16in @ 50ft.
  • Square dot accuracy tolerance: Will not exceed 1/8in @ 50ft.
  • Warranty: Up to 2 years from the date of purchase.
  • Mechanical off/on switch with pendulum lock.
  • Self-leveling range: 4.5 degrees.
  • Up to 15 hours of constant run time on 3-AA batteries.

Specifications

  • Laser class: 2
  • Output: < 1 mW
  • Laser wavelength: 510 - 530 nm
  • Self-levelling range +/-: 4.50°
  • Levelling accuracy +/-: 3/16 in @ 30 ft
  • Laser beam accuracy (up) +/-: 3/16 in @ 30 ft
  • Laser beam accuracy (down) +/-: 1/8 in @ 30 ft
  • Measuring range of visible point: 60 ft
  • Operating life: 20 h
  • Protection class: IP 54
  • Tripod connection: 1/4"-20

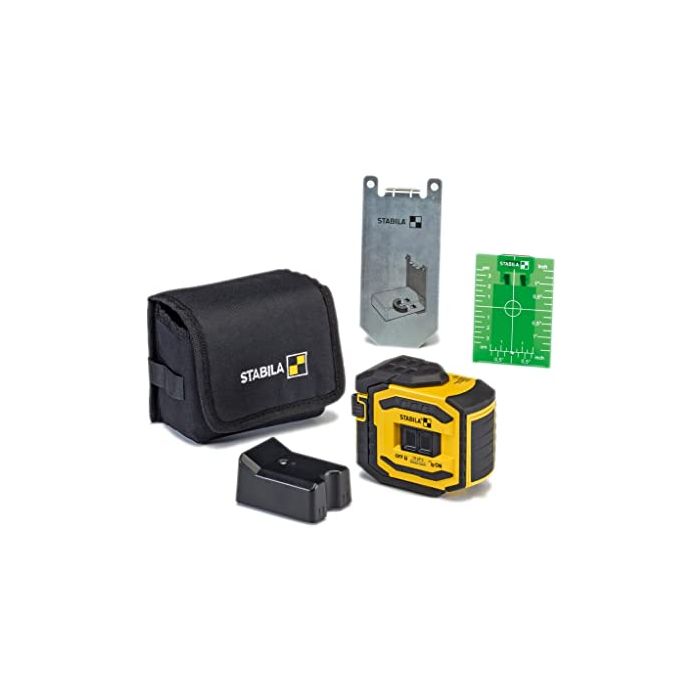

Includes

  • LA-5PG 5-point laser
  • Metal wall mount plate
  • Green plastic target plate
  • Pouch
  • 3 x AA 1.5 V batteries
