The MILWAUKEE® M18™ FORCE LOGIC™ 11T Dieless Latched Linear Utility Crimper is the easiest way to crimp utility connectors. This battery-powered crimper tool produces connections that meet ANSI C119.4 from #4 -556MCM AAC/ACSR, and UL486A-B from #4 – 1000 MCM Cu/Al, connection integrity standards on several leading brands of utility connectors. The inline design and centered, balanced grip allow use with one hand in multiple orientations. An enlarged trigger and electronic release button enable both left and right-handed users to easily activate the tool while wearing Class 3 gloves without changing hand position. The head of the crimper rotates 340°, and the quick-release and push-to-close style latch pin is easily opened or secured with just one touch. Predictive Force Monitoring (PFM™) constantly measures output force to deliver the fastest crimp speeds and ensures full pressure is reached every time. A pre-crimp battery check ensures that the battery has enough charge to complete a full crimp. Equipped with fully enclosed high-speed hydraulics, a POWERSTATE™ Brushless Motor, REDLINK™ Electronics, and REDLITHIUM™ Batteries, the tool provides unmatched reliability in the toughest conditions. Integrated with MILWAUKEE® ONE KEY™ Technology, the crimper stores real-time crimp data, which is used to view historical performance data, sync data to the cloud for easy access, and build professional reports on the back end.

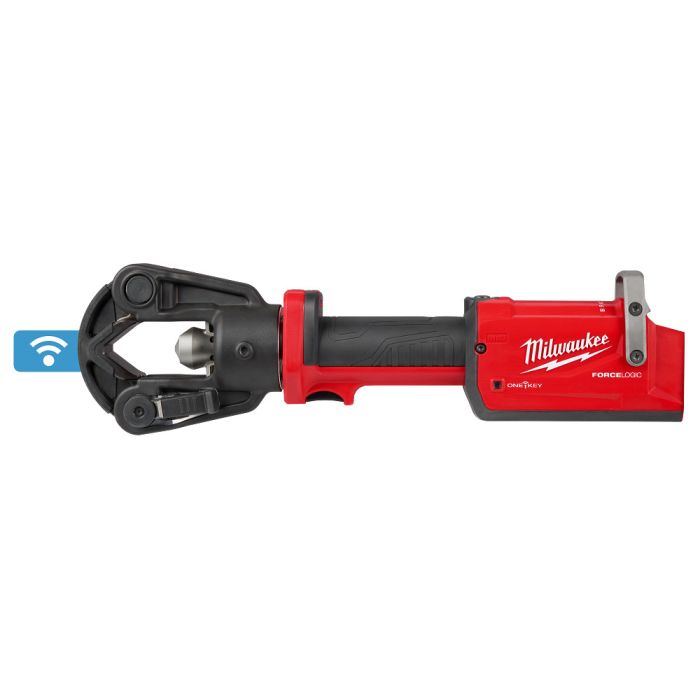

Milwaukee 2876-20 M18™ FORCE LOGIC™ 11T Dieless Latched Linear Utility Crimper
Brand New
this item condition is new
Special Order
usually ships within 10-15 business days
Features
Lightest, most balanced inline design delivers maximum control
PREDICTIVE FORCE MONITORING (PFM™) helps measure output force
Fastest 11T Dieless Crimper
Produces connections that meet ANSI C119.4 and UL486A-B certifications on several leading brands of utility connectors
Inline design & 340° rotating head for easy access in tight spaces
Enlarged trigger designed specifically for use with Class 3 gloves
Easy to reach electronic release button enables easy activation for right- and left-handed users
Quick Release and Push-to-Close latch pin design provides easy access around splices
Pre-crimp battery check automatically ensures enough charge to complete each crimp
Instant verification of successful cycle with green LED
Hydraulic system optimized for consistent performance from -4° to 140° F
Longer life with POWERSTATE™ brushless motor & weather protected electronics that keep dirt, dust & moisture out
Records & stores every crimp made for professional report building through ONE KEY™
Part of the M18™ System, featuring over 200+ tools
Specifications
| Output Force (t) | 11 |
| Degree Head Rotation | 340 |
| Batteries Included | No |
| Handle Grip Design | In line |
| Batteries Included / Bare Tool | Bare Tool |
| Variable Speed * | No |
| Aluminum Lug Capacity | 8 AWG to 1000 MCM |
| ONE-KEY™ Enabled * | Yes |
| Full Pressure Indicator | Yes |
| Battery Series | M18™ |
| Reporting and Tool Diagnostics | Built In - One Key Enabled |
| Motor Type * | Brushless |
| Copper Lug Capacity | 8 AWG to 1000 kcmil |
| Adaptive Pressure Control System | Yes |
| Battery Quantity Included | 0 |
| Balanced Center Grip | Yes |
| Battery Voltage * | 18 |
| Battery Capacity Home Depot | No Battery |
| Voltage Rating | 18V |
| Auto Reset | Yes |
| Crimp Speed (sec) | 3 |
| Condition | New |
| Maximum Operating Temperature (°F) | 140 |
| Crimper Head Style | Various |
| Battery Composition | Lithium-Ion (Li-ion) |
| Number of Batteries Required | 1 |
| Includes Charger | No |
| ONE-KEY™ Baseline (Track, Manage, Lock) | Yes |
| ONE-KEY™ Adaptive Features | Lock; Manage; Quality Assurance Reporting; Track |
| Battery System * | M18™ |
| FUEL™ * | No |
| Power Tool Branding * | Brushless (Not FUEL™) |
| ASTM F1505-01 Compliant | Not Tested |
| Battery Amp Hour (Ah) * | 0 |
| Battery Charger Input Voltage * | 120 |
| Brushless Motor * | Yes |
| Certifications and Listings | ANSI Certified; 1-UL Listed |
| Color Finish | Red |
| Electrician Tool Application | Crimping |
| Energy STAR Certification | No |
| IEC 60900 Compliant | Not Tested |
| Material * | Rubber; Steel; Plastic |
| Minimum Working Temperature (°F) | -4 |
| NFPA 70E Compliant | Not Tested |
| Weight Battery Installed (lb) | 15.25 |
| Weight Excluding Battery (lb) * | 14.25 |
| Badge Branding * | Not Applicable |
| Number of Batteries Included | 0 |
| Corded Cordless | Cordless |
| Crimper Series | M18(TM) FORCELOGIC(TM) w/ONE-KEY |
| Powered Tool Power Source | Electric - Cordless |
Includes
(1) M18 FORCE LOGIC 11T Dieless Latched Linear Utility Crimper (2876-20)
