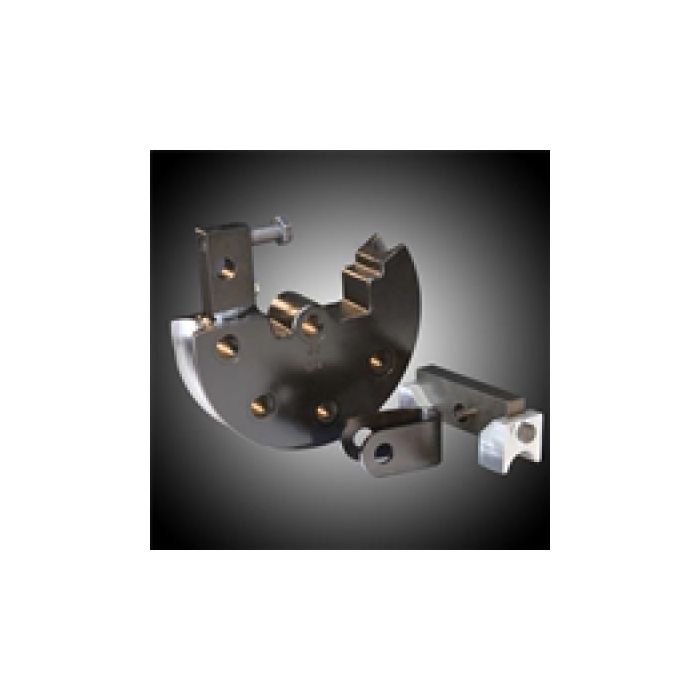

JD Squared M3MP306019 M3B Metric Die Set - 33.4mm (114.3-90) 25mm Pipe

Brand New


this item condition is new

Special Order


usually ships within 10-15 business days
CA$387.99
Model No: M3MP306019
Website Product ID: 20940

Features

  • M3B Metric Die Set - 33.4mm (114.3-90) 25mm Pipe
  • Note: In the product column, the numbers in the parenthesis [ ex: (114.3-180) ] designate the die set's center line radius and maximum normal degree of bend. Therefore (114.3-180) would represent a die set with a center line radius of 114.3mm and would be capable of producing a complete 180 degree bend. The "Center Line Radius" is the bend radius as measured from the center rotation point of the die to the middle of the tubing. The 'Minimum Wall Thickness' represents the minimum wall thickness for consistent high quality wrinkle free bends. Wall thicknesses less than 2.1mm may require an anti-springback block added to the followbar to help limit springback and prevent wrinkling. (If anti-springback is a concern, you may want to consider the Model 32 Bender, which has anti-springback mechanisms built in.) All die sets will bend up to 3mm wall.
  • Dies rated for 90 degree bends are actually machined to approximately 115 degrees and 180 degree dies are machined to approximately 210-220 degrees.
  • 90 degree bend. Wall Thickness – Schedule 40

Specifications

Includes

  • (1) M3B Metric Die Set - 33.4mm (114.3-90) 25mm Pipe ( M3MP306019)
