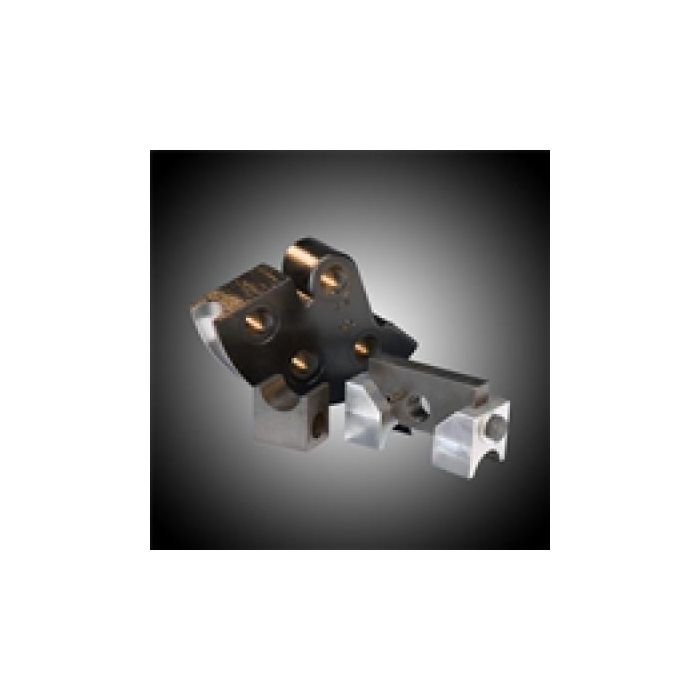

JD Squared M4MR307235 M4B Metric Die Set – 25mm (114.3-90) Round Tube

Brand New


this item condition is new

Special Order


usually ships within 10-15 business days
CA$358.99
Model No: M4MR307235
Website Product ID: 21474

Features

  • M4B Metric Die Set – 25mm (114.3-90) Round Tube
  • Note: In the product column, the numbers in the parenthesis [ ex: (114.3-180) ] designate the die set's center line radius and maximum normal degree of bend. Therefore (114.3-180) would represent a die set with a center line radius of 114.3mm and would be capable of producing a complete 180 degree bend. The "Center Line Radius" is the bend radius as measured from the center rotation point of the die to the middle of the tubing. The 'Minimum Wall Thickness' represents the minimum wall thickness for consistent high quality, wrinkle-free bends. Die sets up to 30mm can bend solid round. Die sets up to 50mm OD will bend up to 3.4mm wall.
  • Dies rated for 90 degree bends are actually machined to approximately 115 degrees and 180 degree dies are machined to approximately 210-220 degrees.
  • 90 degree bend. Minimum Wall Thickness - .2.1mm. Maximum Wall Thickness – Solid.

Specifications

Includes

  • (1) M4B Metric Die Set – 25mm (114.3-90) Round Tube ( M4MR307235)
