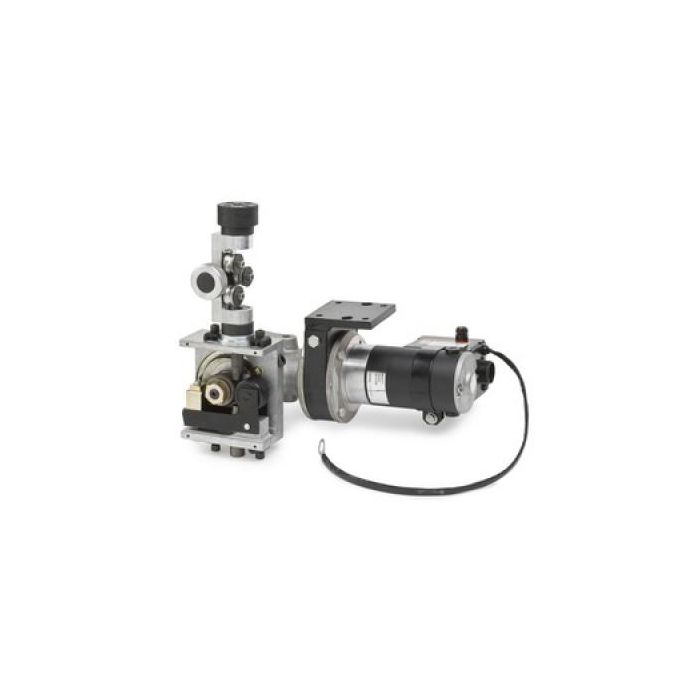

Lincoln Electric K2312-2 MAXSA 29 FEED HEAD

Brand New


this item condition is new

Special Order


usually ships within 10-15 business days
CA$7,249.99
Model No: K2312-2
Website Product ID: 36181

Features

  • Submerged Arc Systems for Fabrication Integrators and Robotic Applications The compact MAXsa™ 29 Feed Head is intended for integrator solutions as well as the latest submerged arc robotic applications.
  • Closed Loop Speed Control – Facilitates full control over starting, running and stopping wire feed speed.
  • 32VDC permanent magnet, high torque motor that delivers plenty of traction to push up to 7/32 in. (5.6 mm) diameter solid wire. Top speed of up to 500 ipm (11.43 m/min) can be achieved by changing the gear ratio.
  • IP23 Rated – Tested to withstand harsh environments.
  • Standard conversion kits – Used to change the speed ratio to match the requirements of your application.
  • Rotational feed head adjustment in one plane allows flexible, accurate setup for fixturing.
  • Standard adjustable wire straightener.
  • Includes drive rolls for 1/16, 5/64 and 3/32 (1.6, 2.0 and 2.4 mm)

Specifications

  • Solid Wire Size Range : 3/32-7/32 (2.4-5.6) 1/16-1/8 (1.6-3.2) 1/16-3/32 (1.6-2.4)
  • Wire Speed Range IPM (M/MIN) : 15-200 (.4-5.0) 15-300 (.4-7.6) 50-500 (1.3-12.7)
  • Dimensions (H X W X D) : 13 in x 16 in x 10 in (330 mm x 406 mm x 254 mm)

Includes

  • (1) MAXSA 29 FEED HEAD
