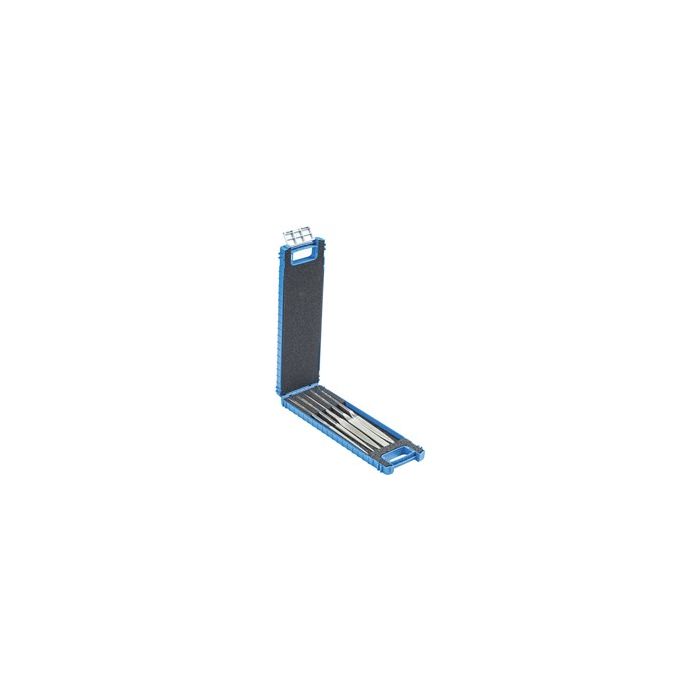

The diamond needle file set comes in a sturdy, practical plastic box which protects the tools from damage. This is ideal for keeping in the tool trolley or workbench.
Diamond needle files can be used universally in tool making.
The diamond needle file set comes in a sturdy, practical plastic box which protects the tools from damage. This is ideal for keeping in the tool trolley or workbench.
Diamond needle files can be used universally in tool making.
Recommendations for use:
Only apply light pressure to the file, especially when using on workpiece edges.
Loaded diamond files can be cleaned in kerosene or anti-static plastic cleaner with a file brush. Alternatively, ultrasonic cleaning is also possible. Often, knocking the file against a hard object is sufficient.
Avoid using grease.
Workpiece materials:
Abrasive materials
Case-hardened steels
Ferrite (magnetic material)
Glass
Graphite and synthetic carbon
Nickel or titanium-based superalloys
Steel materials with a hardness > 54 HRC
Technical ceramics
Tool steels
Tungsten carbide
Applications:
Deburring
Finishing
Leveling
Removing oxide layers
Surface work
Working on edges
Working on edges (chamfering, rounding)
Item number - 15842052
EDP no. - 04025
Grit size - D 126
Length, coating - 2-3/4 Inch
Length, coating - 70 mm
Overall length - 5-1/2 Inch
Overall length - 140 mm
Packaging unit - 1 piece
(5) Diamond needle file set 5-piece - 04025
