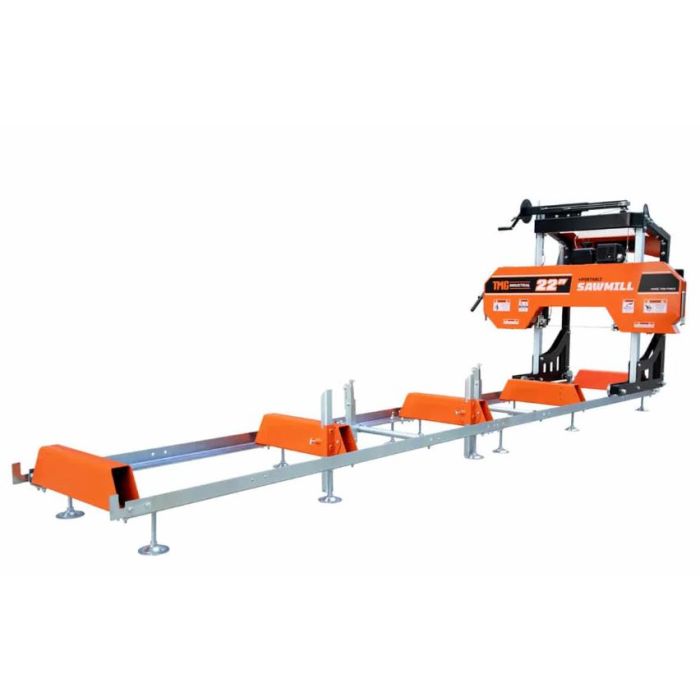

TMG Industrial TMG-PSM22 Portable 22" Sawmill with Kohler 7 HP Gas Engine

Brand New


this item condition is new

Special Order


usually ships within 10-15 business days
CA$3,299.00
Model No: TMG-PSM22
Website Product ID: 77702

The TMG-PSM22 Portable Sawmill is designed for efficiency and precision. With its 7 HP Kohler Command Pro Series Engine delivering consistent power, this sawmill lets you effortlessly transform logs into a wide range of custom boards. It has a 22” max. log diameter and 12’ max log length capacity that will cater to various projects. Built with a sturdy 4-post carriage with saw head anti-tip self-locking design, along with a waist-height lift crank, which make adjustments simple and easy-to-do no matter where your setup is.

Equipped with a 10 L translucent water tank to keep the blade cool while cutting, reducing wear on the teeth and extending their lifespan. Dual quick log clamps and adjustable limit tubes accommodate different wood sizes for enhanced versatility, and you can easily craft boards up to 20” wide and 5-½” thick.

A tri-fuel conversion system in the engine provides exceptional performance to the user and makes this sawmill adaptable and ready for any environment you put it in. Its durable aluminum build and Oil Sentry™ function, which protects against low oil levels, add to its heavy-duty and robust design. Get ready to change the game and upgrade your woodworking with this high quality and cost-effective saw.

We also carry other sawmill models: TMG Portable Sawmills

Features

  • The 7 HP Kohler Command Pro Series Engine is known for its reliability, and offers consistent and efficient cutting for effortless workflow
  • Built with a sturdy 4-post carriage and saw head locking design, this sawmill offers durability and stability during all operations
  • A waist-height saw head lift crank mechanism allows hassle-free adjustments, letting you switch between cuts swiftly and comfortably without strain
  • With a remarkable 22” max. log diameter and 12’ max log length, you can tackle a wide range of projects, from small planks to more substantial boards
  • Secure transportation is made possible by the saw head locking design which enhances safety during transportation and prevents mishaps while moving
  • Dual quick log clamps, combined with adjustable limit tubes, accommodate various wood sizes, enhancing your flexibility and creative options
  • Oil Sentry™ function provides automatic low-oil shutdown, safeguarding the engine and prolonging its lifespan for extended heavy-duty use

Specifications

    • Maximum log diameter: 22”
    • Maximum log length: 12’
    • Maximum board width: 20”
    • Maximum board thickness: 5-½”
    • Track length: 14-½’
    • Saw blade (*sold separately):
      • Blade length: 128” (3251mm)
      • Blade width:1-¼”-1-⅜” (32-34mm)
      • Blade thickness: 0.035”-0.043” (0.9-1.1mm)
    • 10 L translucent water tank
    • Dual quick log clamps
    • Saw head locking design
    • Waist-height lift crank

Engine

  • Model: Kohler® CH270
  • Type: Four-cycle, tri-fuel conversion, OHV, aluminum head & crankcase
  • Power: 7 HP
  • Displacement: 208 cc
  • Start type: Recoil
  • Fuel capacity: 4.0 L
  • Oil capacity: 0.6 L
  • Cast iron cylinder liners provide lasting durability
  • Oil Sentry™ automatically shuts the engine down in low-oil condition

Includes

(1)TMG-PSM22  Portable 22" Sawmill with Kohler 7 HP Gas Engine – Bandsaw Mill for 12' Logs
