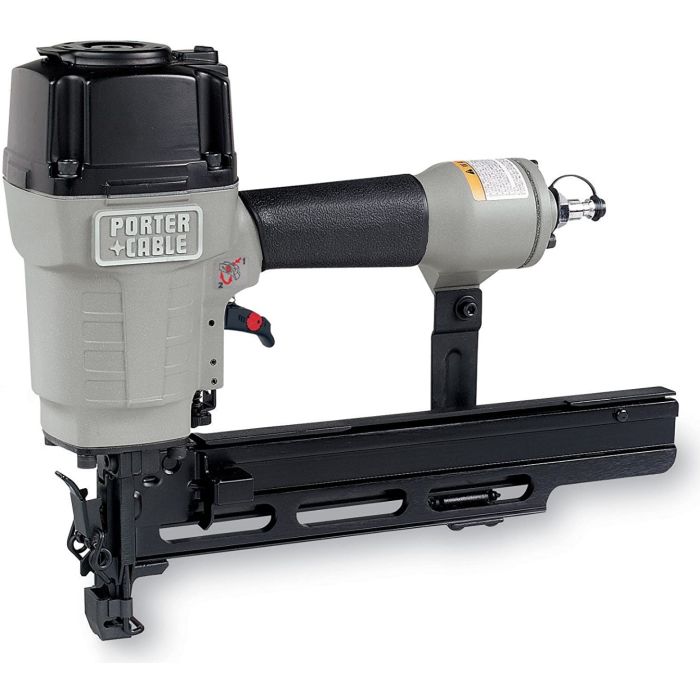

Built to last, this medium crown stapler has a piston ring design that prevents cylinder bore scuffing and lasts longer than conventional "O" rings. It will drive 16-gauge, 7/16-inch crown "N" wire staples from one to two inches long. The open top-load magazine makes for easy reloads and will hold up to 150 staples for less down time. An adjustable depth-of-drive mechanism allows countersinking fasteners to match the application. The bump-fire trigger allows for faster operation. Also, though it comes with a 1/4-inch quick coupler, the air inlet is 3/8-inch NPT. This allows the option of using a 3/8-inch quick coupler for better airflow in high-production applications. A quick-release nosepiece is also standard for faster clearing of jammed fasteners. Includes stapler, carrying case, 1/4-inch male quick coupler plug with dust cap, oil, allen wrenches, and operator's manual.
Features
Drives Senco type "N" wire 16 Ga. 1/16" crown construction staples from 1" to 2" long
Powerful piston with Teflon® ring design that prevents cylinder bore scuffing - lasts far longer than conventional "O" rings
Tool-free adjustable exhaust diffuser
Open top-load hard coat anodized magazine with push-button follower accommodates two 70-staple strips or three 50-staple strips
Quick-release nosepiece for easy jam removal
Tool-free depth-of-drive adjustment to enable fastening without staple drive-through
Standard Equipment: Stapler, 3/8" NPT air inlet w/ 1/4" male quick plug with dirt & dust cover, rugged carrying case, oil, wrenches, and operating manual
Specifications
Fastener Type (Inches): 16 Ga. 7/16" Crown Staple
Shipping Weight (Lbs.): 13
Fastener Range (In): 1 to 2
Magazine Capacity: 150 Staples
Jam Clearance: Hinged Lever Type Quick Release Nose
Operating Pressure: 70-120 psi
Firing Modes: Sequential & Bump Fire
Height (Inches): 10-3/4
Length (Inches): 14-1/8
Weight (Lbs.): 5-7/8
Includes
One year warranty with 30-day performance certification
