The Powers 7436SD2-PWR Power-Stud®+ SD2 is a high-performance, torque-controlled wedge expansion anchor designed for secure fastening in cracked and uncracked concrete. Featuring a zinc-plated carbon steel body with a stainless steel expansion clip, it delivers reliable holding power for structural, mechanical, electrical, and safety-critical applications. Suitable for medium- to heavy-duty anchoring, it is commonly used for beam and column anchorage, pipe supports, cable trays, strut systems, and fire protection installations.

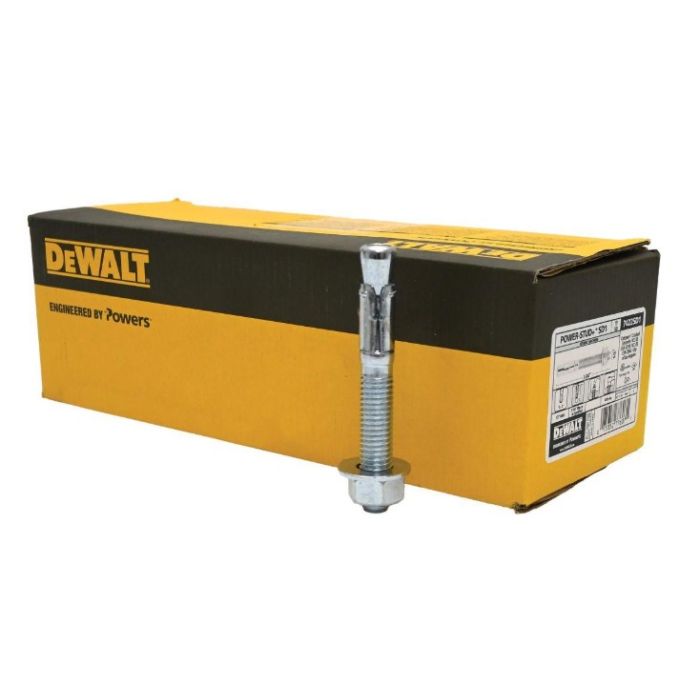

Powers 7436SD2-PWR Power-Stud®+ SD2 Wedge Expansion Anchor - 25 Pack
Brand New
this item condition is new
Special Order
usually ships within 10-15 business days
CA$1,334.99
Availability:
Special Order usually ships within 10 - 15 business days
Model No: 7436SD2-PWR
Website Product ID: 79693
Features
Fully threaded, torque-controlled wedge expansion anchor
Designed for cracked and uncracked concrete
Zinc-plated carbon steel body for corrosion resistance
Stainless steel expansion clip for consistent performance
Anchor diameter matches drill bit size for easy installation
Can be installed through standard fixture holes
Follow-up expansion capability under tensile loading
Head stamped with size identification markings
Suitable for seismic and wind loading applications
Includes nut and washer for complete installation
Specifications
| Specification | Value |
|---|---|
| Manufacturer Part Number | 7436SD2-PWR |
| Product Type | Wedge Expansion Anchor |
| Diameter | 5/8 in |
| Overall Length | 7 in |
| Thread Length | 5-1/8 in |
| Thread Size | 5/8-11 UNC |
| Drill Bit Size | 5/8 in |
| Minimum Embedment Depth | 3-7/8 in |
| Maximum Work Thickness | 2-1/2 in |
| Material | Carbon Steel Body with Stainless Steel Expansion Clip |
| Finish | Zinc Plated |
| Base Materials | Normal-weight concrete, lightweight concrete, concrete over steel deck |
| Package Quantity | 25 |
| Standards & Approvals | ICC-ES ESR-2502, ACI 355.2, ICC-ES AC193, UL Listed, FM Approved |
| Country of Origin | China |
Includes
- (25) Power-Stud®+ SD2 wedge anchors per box
- Zinc-plated hex nuts
- Zinc-plated washers
