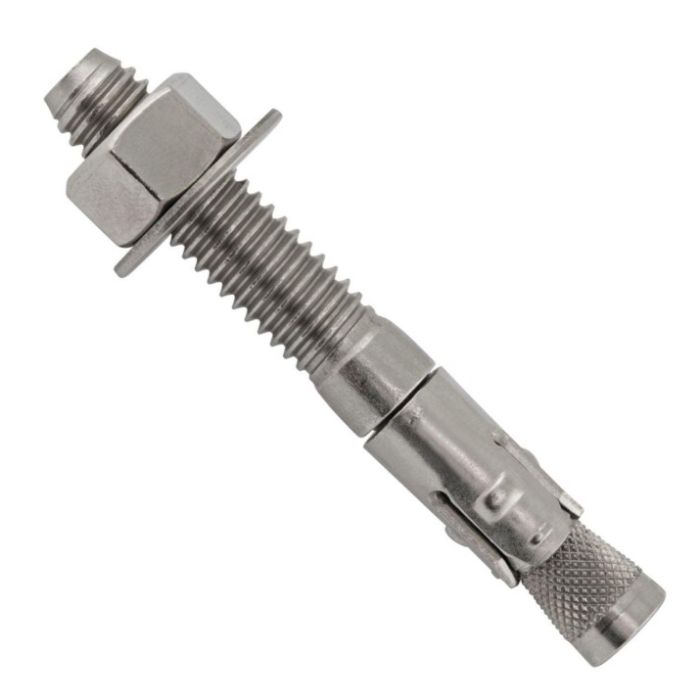

The Powers 7640SD6-PWR Power-Stud®+ SD6 is a premium, fully threaded, torque-controlled wedge expansion anchor manufactured from Type 316 stainless steel for superior corrosion resistance. Designed for use in cracked and uncracked concrete, as well as grouted CMU, the SD6 series delivers reliable performance in harsh environments including marine, wastewater, chemical processing, and coastal applications. The anchor features a stainless steel body and expansion clip for long-term durability and structural performance.
Powers 07630-PWR Power-Stud®+ SD6 Wedge Expansion Anchor - 20 Pack
Brand New
this item condition is new
Special Order
usually ships within 10-15 business days
CA$144.99
Availability:
Special Order usually ships within 10 - 15 business days
Model No: 07630-PWR
Website Product ID: 79695
Features
- Type 316 stainless steel construction for maximum corrosion resistance
- Fully threaded, torque-controlled wedge anchor
- Designed for cracked and uncracked concrete
- Suitable for normal-weight concrete, lightweight concrete, and grouted CMU
- Knurled mandrel design improves performance and helps prevent galling
- Anchor diameter matches drill bit size for easier installation
- Can be installed through standard fixture holes
- Head stamped with identification markings for inspection
- Follow-up expansion capability under tensile loading
- Includes stainless steel nut and washer for complete installation
Specifications
| Specification | Value |
|---|---|
| Manufacturer Part Number | 7640SD6-PWR |
| Product Type | Wedge Expansion Anchor |
| Anchor Diameter | 3/4 in |
| Overall Length | 4-1/4 in |
| Thread Type | UNC Coarse |
| Thread Length | 1-7/8 in |
| Drill Bit Size | 3/4 in |
| Material | Type 316 Stainless Steel |
| Finish | Plain Stainless Steel |
| Base Materials | Cracked Concrete, Uncracked Concrete, Lightweight Concrete, Grouted CMU |
| Package Quantity | 20 |
| Corrosion Resistance | Marine / Severe Environment Rated |
| Approval | ICC-ES ESR-2502 |
| Installation Type | Through-Fixture Installation |
| Country of Origin | China |
Includes
- (20) Power-Stud®+ SD6 wedge anchors per box
- 316 stainless steel hex nuts
- 316 stainless steel washers
