The Powers 7640SD6-PWR Power-Stud®+ SD6 is a heavy-duty, fully threaded, torque-controlled wedge expansion anchor designed for high-performance anchoring in cracked and uncracked concrete. Manufactured from Type 316 stainless steel, it provides exceptional corrosion resistance for marine, coastal, wastewater, and other harsh environments. The anchor features a stainless steel body and expansion clip for long-term durability and dependable structural performance. Nut and washer are included for complete installation.

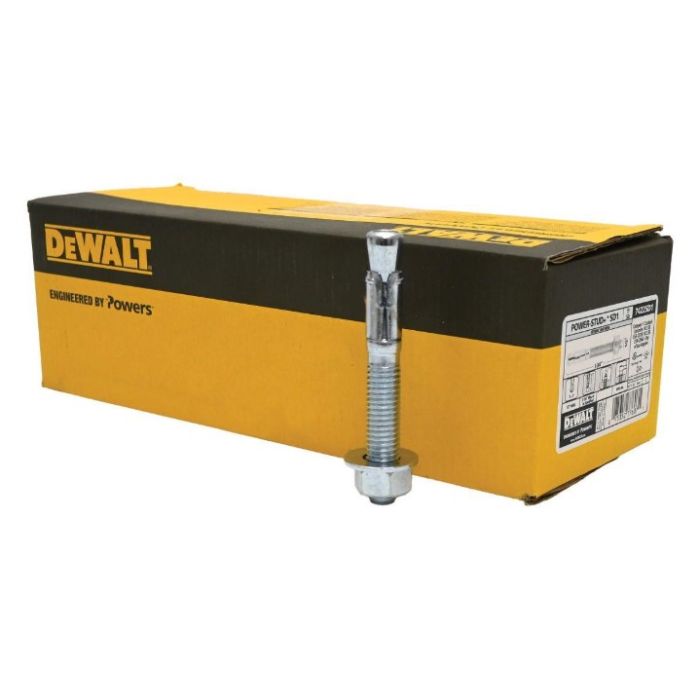

Powers 7640SD6-PWR Power-Stud®+ SD6 Wedge Expansion Anchor - POWERSTUD 316SS 3/4" X 4 1/4" - 20 Pack
Brand New
this item condition is new
Special Order
usually ships within 10-15 business days
CA$2,311.99
Availability:
Special Order usually ships within 10 - 15 business days
Model No: 7640SD6-PWR
Website Product ID: 79699
Features
- Type 316 stainless steel construction for maximum corrosion resistance
- Fully threaded, torque-controlled wedge anchor design
- Suitable for cracked and uncracked concrete
- Compatible with normal-weight concrete, lightweight concrete, and grouted CMU
- Knurled mandrel design helps prevent galling and improves performance
- Anchor diameter matches drill bit size for simple installation
- Through-fixture installation capability
- Identification markings stamped on anchor head
- Follow-up expansion under tensile loading
- ICC-ES approved for structural applications and seismic loading
- Includes stainless steel nut and washer
Specifications
| Specification | Value |
|---|---|
| Manufacturer Part Number | 7640SD6-PWR |
| Product Series | Power-Stud®+ SD6 |
| Product Type | Wedge Expansion Anchor |
| Diameter | 3/4 in |
| Length | 4-1/4 in |
| Thread Size | 3/4"-10 UNC |
| Thread Length | 1-7/8 in |
| Material | Type 316 Stainless Steel |
| Finish | Plain Stainless Steel |
| Drill Bit Size | 3/4 in |
| Minimum Embedment Depth | 4-1/2 in |
| Minimum Hole Depth | 4-3/4 in |
| Installation Torque | 110 ft-lbs |
| Wrench Size | 1-1/8 in |
| Base Materials | Concrete, Lightweight Concrete, Grouted CMU |
| Package Quantity | 20 |
| ICC Evaluation Report | ESR-2502 |
| Seismic Approved | Yes |
| Corrosion Resistance | Marine & Severe Environment Rated |
Includes
- (20) Power-Stud®+ SD6 wedge anchors
- 316 stainless steel hex nuts
- 316 stainless steel washers
