The Powers 07610-PWR Power-Stud® Wedge Expansion Anchor is a fully threaded, torque-controlled wedge anchor designed for fastening into solid concrete and grout-filled concrete masonry. Manufactured from 316 stainless steel, it provides excellent corrosion resistance, making it ideal for marine, water treatment, food processing, and other harsh environments. The anchor installs quickly through the fixture and delivers dependable medium-duty holding power.

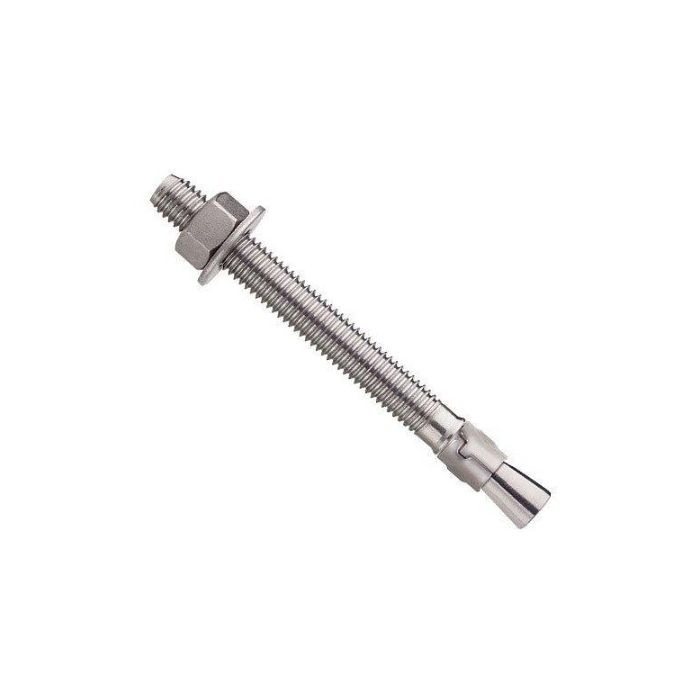

Powers 07610-PWR Power-Stud® Wedge Expansion Anchor (316 Stainless Steel) - 50 Pack
Brand New
this item condition is new
Special Order
usually ships within 10-15 business days
CA$1,091.99
Availability:
Special Order usually ships within 10 - 15 business days
Model No: 07610-PWR
Website Product ID: 79694
Features
- Fully threaded wedge expansion anchor
- Constructed from corrosion-resistant 316 stainless steel
- Torque-controlled design for reliable installation
- Can be installed through the fixture
- Length identification stamped on anchor
- Chamfered impact section helps protect threads
- Expansion clip prevents spinning during installation
- Uses the same diameter drill bit as the anchor diameter
- Suitable for concrete and grout-filled CMU applications
- Ideal for indoor, outdoor, and marine environments
Specifications
| Specification | Value |
|---|---|
| Manufacturer Part Number | 07610-PWR |
| Product Type | Wedge Expansion Anchor |
| Anchor Diameter | 3/8 in |
| Overall Length | 2-1/4 in |
| Thread Size | 3/8"-16 UNC |
| Thread Length | 1-1/4 in |
| Material | 316 Stainless Steel |
| Finish | Plain Stainless |
| Drill Bit Size | 3/8 in |
| Minimum Embedment | 1-5/8 in |
| Maximum Work Thickness | 5/8 in |
| Package Quantity | 50 |
| Suitable Base Materials | Concrete, Structural Lightweight Concrete, Grouted CMU |
| Standards | ASTM E488, UL Listed (EX1289), GSA Specification |
| Installation Torque | 28 ft-lbs |
| Ultimate Tension Strength | 4,075 lbs |
| Ultimate Shear Strength | 3,760 lbs |
Includes
(50) Power-Stud® wedge anchors per box
Hex nuts
Washers
