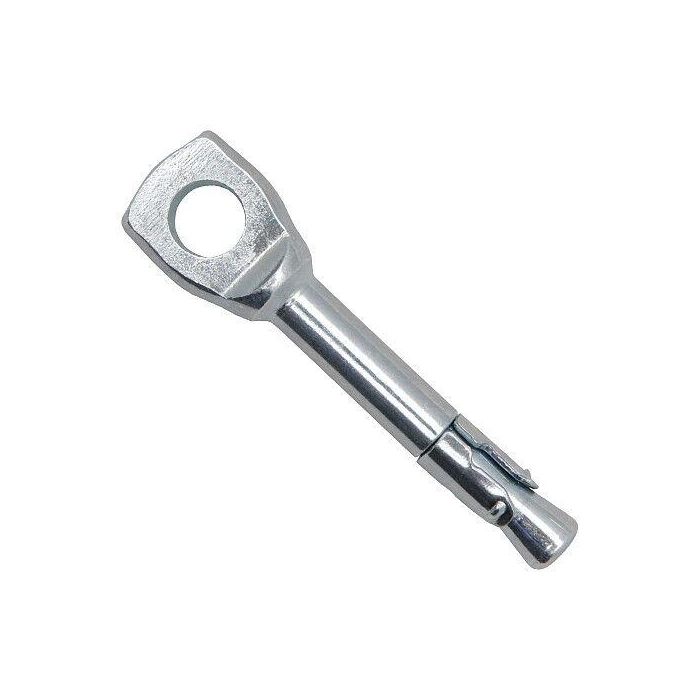

The 7409SD1-PWR is a DEWALT Power-Stud®+ SD1 Tie-Wire Wedge Expansion Anchor, designed for secure fastening into concrete. It features a tie-wire head and zinc-plated carbon steel construction for indoor and low-corrosion environments. Suitable for normal-weight concrete, lightweight concrete, concrete over steel deck, and grouted concrete masonry.
Powers 7409SD1-PWR POWERSTUD+ SD1 TIE-WIRE 1/4" - BOX 100
Brand New
this item condition is new
Special Order
usually ships within 10-15 business days
CA$26.99
Availability:
Special Order usually ships within 10 - 15 business days
Model No: 7409SD1-PWR
Website Product ID: 79675
Features
- Consistent performance in both high- and low-strength concrete
- Designed for use in uncracked concrete
- Tie-wire head for suspending wire assemblies, hooks, and pencil rod
- Anchor can be installed through standard fixture holes
- Nominal drill bit size is the same as the anchor diameter
- Follow-up expansion design maintains holding power under tensile loading
- Zinc-plated carbon steel body and expansion clip for corrosion resistance in indoor applications
- Suitable for normal-weight concrete, sand-lightweight concrete, concrete over steel deck, and grouted concrete masonry.
Specifications
| Specification | Value |
|---|---|
| Manufacturer Part Number | 7409SD1-PWR |
| Product Type | Power-Stud®+ SD1 Tie-Wire Wedge Expansion Anchor |
| Anchor Diameter | 1/4 in. |
| Overall Length | 2 in. |
| Material | Carbon Steel |
| Finish | Zinc Plated |
| Head Style | Tie-Wire Head |
| Thread Type | UNC |
| Minimum Embedment Depth | 1-1/8 in. |
| Eyelet Hole Size | 9/32 in. |
| Shear Strength | 1,255 lb |
| Tensile Strength | 1,660 lb |
| Base Materials | Concrete, concrete over steel deck, sand-lightweight concrete, grouted masonry |
| Application | Wire assemblies, hooks, pencil rod suspensions |
| Drill Bit Size | 1/4 in. |
| Standards | ASTM E488 Tested |
Includes
POWERSTUD+ SD1 TIE-WIRE 1/4" - BOX 100
