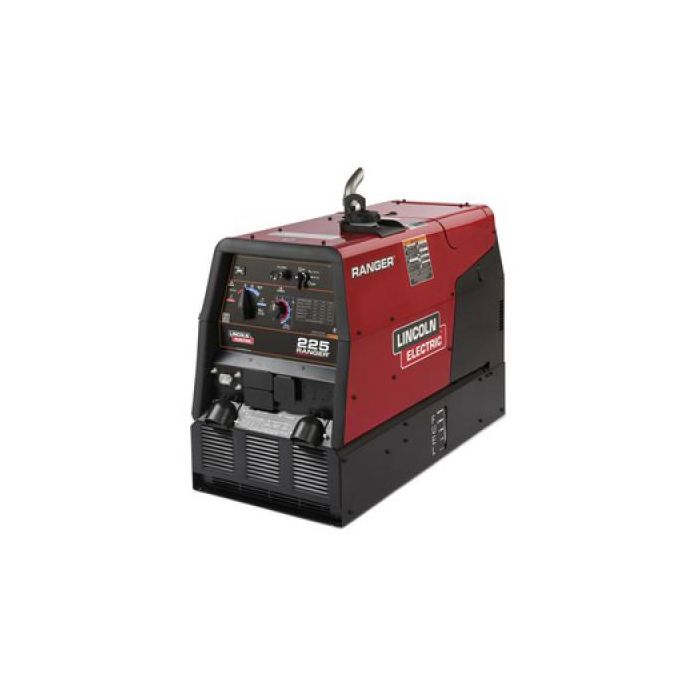

Lincoln Electric K2857-1 RANGER® 225 ENGINE DRIVEN WELDER

Features

• The Ranger® 225 is a multi-process, engine-driven welder designed for a variety of processes – stick, TIG, MIG or flux cored. Whatever the process or application, arm yourself to get the job done and get it done right the first time.
• Totally enclosed case protects the engine and limits noise
• Smooth DC welding output
• 10,500 Watts AC generator power
• Totally Enclosed Case
• Engine is fully protected
• 3 service access doors
• Low noise – 76.4 dBA sound level at 23 ft. (7 m). 100.7 dB sound power (Lwa) at rated output
• Versatile DC Welding
• Smooth DC welding output for a broad range of stick electrode types
• MIG, flux-cored and TIG capable (with optional equipment).
• 10,500 Watts Peak Single-Phase AC Generator Power
• Peak for motor starting
• 9,000 watts continuous power for generator, plasma cutter or inverter welder.
• Lights, grinder, power tools.
• 23 HP Kohler® Gasoline Engine
• 2 cylinder, 4 cycle overhead valve air-cooled design.
• Oil drain extension for easy oil changes
• 12 gallon tank for extended run times
• Only 1.5 gallons/hour at 210 amps DC, 25V, 100% duty cycle. Visual fuel level gauge on both sides of unit.
• Rugged Reliability
• Welding and AC generator outputs rated at 104ºF (40ºC).
