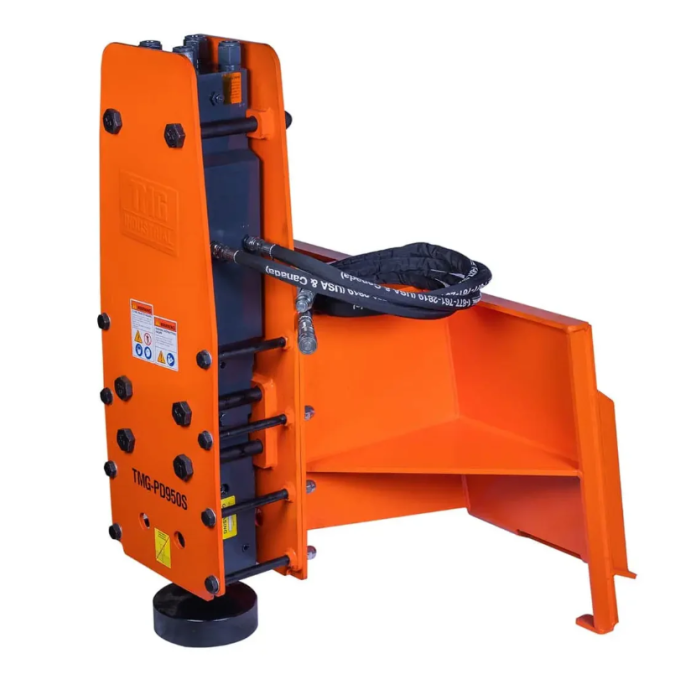

The TMG-PD950S Skid Steer Post Pounder is trusted by contractors, farmers and acreage homeowners across North America to install their fence posts and piping. Simple to attach hydraulic lines and a bolt-on, open frame mounting plate made of heavy gauge steel allow for a smooth and secure hook up to your machine. Easily set up a property perimeter, stand signs or put in agricultural fencing with this powerful post driver hammer.
Will accommodate posts up to 10" in diameter with a solid steel driving cup that efficiently transfers power from the piston to the object being struck. Four through bolts tightly affix the front/back head and cylinder of the post pounder for a durable construction that can handle its 1030 J energy and 400-800 BPM work capacity.
Located in the back head of the hammer is a cushion chamber charged with nitrogen (N2) gas that compresses during upward strokes of the piston. This serves to provide maximum absorption of piston recoil, efficiently storing this energy for the next blow. Continuous vibratory drive motion means posts will be in the ground in no time at all. Allows you to work smarter and protect your body from unnecessary labour.
Features
Universal skid steer quick-attach mount for seamless integration
Handles posts up to 10" / 250 mm in diameter with a solid steel driving cup
Delivers 760 ft-lb / 1030 J impact energy at 400–800 bpm for efficient post driving
Operates at 1740-2466 psi / 120–170 bar hydraulic pressure with 50–90 L/min flow rate
Includes ½" / 13 mm hydraulic hoses with flat face couplers and nitrogen charge kit
Heavy-duty 0.8" / 19 mm steel plate frame ensures durability in tough conditions
Specifications
Operating weight: 1200 lb
Energy class: 1030 J
Skid steer lifting capacity required: 1750 lb
Skid steer power recommended: 50-100 HP
Hydraulic flow: 13-24 GPM
Working pressure: 1750-2500 PSI
Chisel shaft diameter: 3”
Pounding rate: 400-800 BPM
Steel plate frame: ¾”
Driving cup inside size: 10” diameter
Hydraulic hose: ½” diameter
Universal skid steer quick attach mount
This product is packed in a metal crate shipping box
Shipping dimension: 50” x 38” x 56” (L x W x H)
Shipping weight: 1300 lb
Accessories:
(1) Service toolbox kit
(2) ½” Hydraulic hoses and flat face couplers included
(1) Nitrogen charge kit with CGA580 cylinder adaptor
*Nitrogen does not come charged due to shipping protocols
Includes
(1) Skid Steer Post Pounder, Post Driver, 10" Post Diameter, 1030 J Energy, 400-800 BPM, TMG-PD950S
