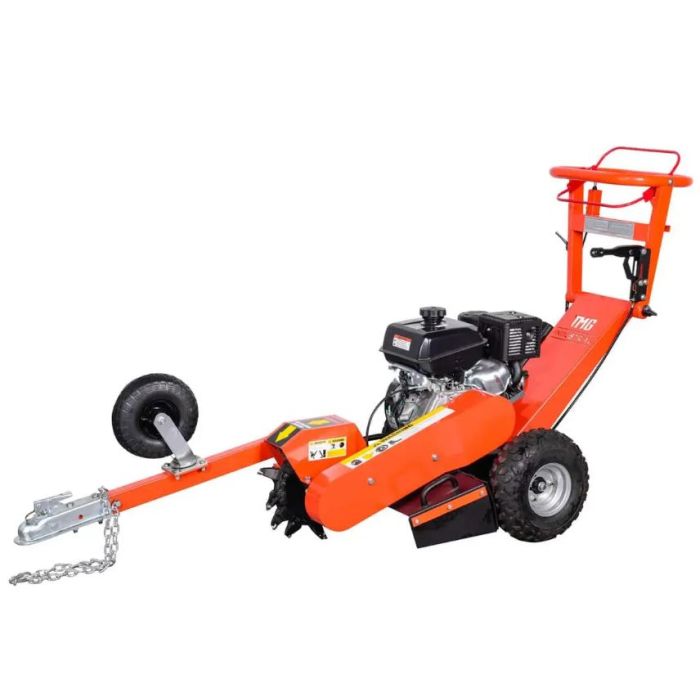

The TMG-GSG12 Walk-Behind Kohler Powered Stump Grinder with ATV/UTV Tow-Bar provides a dynamic cutting and turns tree base removal into a reality efficiently. Allows you to clear land of cumbersome stumps and maximize space to get the most out of your property investments. Powered by a reliable 14 HP Kohler Command Pro Series engine that delivers devastating, heavy-duty cutting action.
12 replaceable and bolt-on carbide steel teeth maintain their sharpness and rigidity even under the intense, 2500 RPM working load transmitted through the dual direct drive belts. This grinder has a 24" above ground and 10" below ground cutting depth capacity to knock out even the toughest root systems.
The ATV/UTV tow-behind design allows you to take this equipment anywhere and everywhere. Its multi-position handle lets you grind from varying angles with incredible maneuverability. The all-terrain tires and commercial grade construction provide you with a secure cutting platform through the reduction of vibrational inefficiencies and overall stress on the operator.
Also available as a walk-behind model: TMG-GSG9
Features
Perfect piece of equipment for yard work, property clearing, agricultural land, wooded areas, commercial developments and more
ATV/UTV tow-behind design allows you to easily transport and work anywhere on your property and even remote, hard to get to areas
Powered by a reliable 14 HP Kohler Command Pro Series engine that runs a dual direct drive belt system capable of spinning the drum up to 2500 RPM
12 carbide steel teeth are housed in the 14” milling wheel and are designed to perform under heavy working conditions while maintaining sharpness
24” above ground and 10” below ground cutting depth to attack even the toughest root systems and varying stump sizes
A centrifugal clutch and drum brake provide both an efficient and safe working operation that will keep this grinder performing at a high level for many years
Heavy-duty, pin locked, all-terrain tires and a commercial grade construction keep this grinder secure while operating on gritty, knotted stumps
Specifications
Assembled size: 100” x 32” x 45” (L x W x H)
Carbide tipped teeth: 12
Cutting wheel diameter: 14”
Cutting wheel Thickness (Blade to blade):73mm (2-3/4")
Cutting wheel speed: 2500 RPM
Cut capacity below ground: 10”
Cut capacity above Ground: 24”
Tire: 14-½”/7.0-6
Hitch trailer coupler: 1-7/8”
Tow bar & trolley wheel
Centrifugal clutch
Drum brakes
Rear discharge
Multi-position handle
Engine:
Model: Kohler® CH440 14 HP Command Pro Series
Type: Four-cycle, OHV, aluminum head & crankcase
Displacement: 429 cc
Start type: Recoil
Oil capacity: 1.16 L
Cast iron cylinder liners & Oil Sentry™ auto shut off
Includes
(1)TMG-GSG12 Walk Behind Kohler Powered Stump Grinder, ATV/UTV Tow Bar, 12 Carbide Teeth, 24" Cutting Capacity, 14 HP Gasoline Engine
