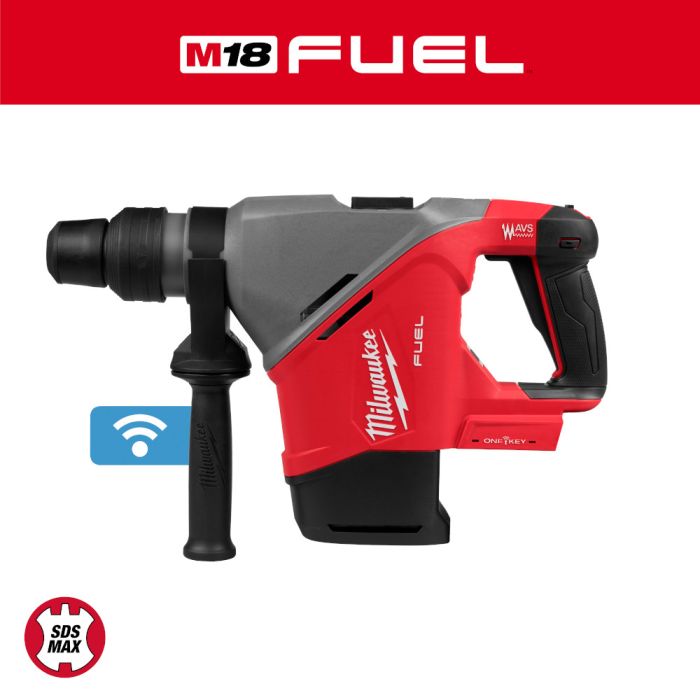

Milwaukee 2917-20 M18 FUEL™ 1-9/16" SDS Max Rotary Hammer w/ ONE-KEY™

main product photo

Pictures are only for respresentation, actual product may vary, the Model #/SKU/Part number listed above is what you will receive

Brand New


this item condition is new

Special Order


usually ships within 10-15 business days
CA$848.00
Model No: 2917-20
Website Product ID: 78545
Expected Date of Shipping: 05/04/2026

Our M18 FUEL™ 1-9/16” SDS Max Rotary Hammer w/ ONE-KEY™ is the next advancement in cordless rotary hammers. This rotary hammer delivers faster drilling and more portability than corded, is designed for maximum control, and can drill over (24) 7/8” x 6” holes per charge when paired with an M18™ REDLITHIUM™ FORGE™ HD12.0 Battery pack. The POWERSTATE™ Brushless Motor and REDLINK PLUS™ Intelligence delivers 6 ft-lbs of impact energy, resulting in harder hitting and a faster drill rate. This rotary hammer provides maximum control and an enhanced feature set including AUTOSTOP™ Enhanced Kickback Control to prevent over-rotation and AVS Anti-Vibration System to reduce fatigue. Equipped with VACLINK™, an integrated wireless dust control technology, allows compatible tools and dust extractors or vacuums to connect to each other, providing users the ability to activate the dust extractor or vacuum directly from the tool for increased efficiency. Additionally, this cordless rotary hammer is compatible with ONE-KEY™ to track and manage inventory. The M18 FUEL™ 1-9/16” SDS Max Rotary Hammer w/ ONE-KEY™ delivers ultimate power while giving you maximum portability on the jobsite.

Features

Faster Drilling, More Portable Than Corded

Designed for Maximum Control

Over (24) 7/8” x 6” Holes Per Charge when paired with the M18™ REDLITHIUM™ FORGE™ HD12.0 Battery

POWERSTATE™ Brushless Motor generates the power to deliver 488 RPM & 3,300 BPM

REDLINK PLUS™ Intelligence ensures maximum performance and protects from overload, overheating and over-discharge

AUTOSTOP™ Enhanced Kickback Control prevents over rotation in a tool bind up

AVS Anti-Vibration System minimizes vibration for maximum comfort

VACLINK™ Wireless Dust Control: Ability to activate a compatible Dust Extractor or Vacuum directly from the tool, increasing efficiency on the jobsite

Variable Speed Trigger for precision and accuracy

Forward & Reverse capable for ease of use when drilling

12-Position Chisel Adjustment allows the user to adjust the bit for operating versatility

Chisel Lock: Ergonomic design locks tool on for increased comfort and productivity when chipping

2-Modes: Rotary Hammer and Hammer Only

ONE-KEY™ Compatible: Ability to track and manage tools for increased productivity and investment protection

5 Year Tool Warranty



Frequently Bought Together

Specifications

Battery System * M18™
Chuck Size (in)* 1-9/16
Chuck Type * SDS Max
Dust Extractor Included * No
FUEL™ * Yes
Handle Type * Drop Motor
Motor Type * POWERSTATE™ Brushless
ONE-KEY™ Enabled * Yes
Power Tool Branding * FUEL™
Rotary Hammer Size (in) * 1-9/16
Switch Type * Trigger
Battery Quantity Included 0
Battery Voltage * 18
Blows Per Minute (bpm) * 3300
Brushless Motor * Yes
Case Included No
Impact Energy (ft-lbs) * 5.9
Includes Charger No
Integrated Light * Yes
Lock-on Switch * Yes
Maximum RPM * 488
Max RPM 488
Condition New
Badge Branding * FUEL™
AUTO STOP ™ * Yes
VACLINK™ Wireless Dust Control * Yes
Anti Vibration System (AVS) * Yes
ONE-KEY™ Baseline (Track, Manage, Lock) Yes
Number of Batteries Required 1
Power Source * Cordless
Product Storage Included No
Product Type * Rotary Hammer
Reverse Function * Yes
Side Handle Yes
Soft Grip Handle Yes
Solid Bit Capacity 1-9/16"
Type of Modes * Rotary Hammer, Hammer Only
Variable Speed * Yes
Chisel Rotation * Yes
Number of Batteries Included 0
Weight Excluding Battery (lb) * 14.1
Battery Charger Input Voltage * 120
Material * Glass Filled Nylon
Battery Composition Lithium-Ion (Li-ion)
Blows Per Minute Range (BPM) 0-3300
Core Bit Capacity * 5
Depth Control Non Adjustable
Handle Material Plastic with Rubber Overmold
Maximum Concrete Bit Size (in) * 1.56
Weight Battery Installed (lb) 17.2
Impacts Per Minute Range (IPM) 0-3300
Maximum Metal Cutting Capacity (in) 0
Maximum Wood Cutting Capacity (in) 0
Accessory Type SDS MAX
Battery Type Lithium Ion
Color Finish Red; Gray
Drill Type Rotary Hammer Drilll

Includes

(1) M18 FUEL™ 1-9/16" SDS Max Rotary Hammer w/ONE-KEY™ (2917-20)
